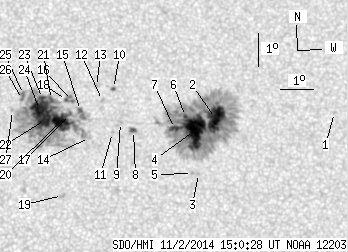

SDO HMI 2014-11-02 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.51 | 609.44 | 68.84 | 305.03 | 12.15 | 114.82 | 0.42 | 356.85 | 0.1440 | -237.2 | 27.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.44 | 12.38 | 120.84 | 6.44 | 322.38 | 0.1802 | -945.0 | -710.1 | |
| 31.13 | 343.26 | 15.59 | 171.78 | 12.22 | 117.21 | 2.80 | 341.05 | 0.1477 | -1311.4 | -409.9 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 10.58 | 116.67 | 2.27 | 340.61 | 0.1177 | -881.0 | -713.6 | |
| 46.18 | -2.00 | 23.10 | -2.00 | 11.86 | 116.56 | 2.16 | 344.50 | 0.1385 | -1391.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 10.58 | 116.49 | 2.09 | 342.06 | 0.1167 | -877.0 | -655.1 | |
| 1.73 | -2.00 | 0.87 | -2.00 | 12.29 | 116.29 | 1.89 | 347.06 | 0.1444 | -942.2 | 999999 | |
| 4.41 | -2.00 | 2.21 | -2.00 | 11.93 | 115.96 | 1.55 | 348.82 | 0.1371 | -1034.3 | 999999 | |
| 1.73 | 4.32 | 0.86 | 2.16 | 11.87 | 114.71 | 0.30 | 357.76 | 0.1336 | 1069.0 | 822.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 12.11 | 114.32 | -0.09 | 0.65 | 0.1377 | 644.0 | 589.8 | |
| 0.52 | 1.64 | 0.26 | 0.82 | 13.13 | 114.10 | -0.30 | 1.91 | 0.1555 | -892.8 | -745.2 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 11.81 | 114.07 | -0.33 | 2.48 | 0.1326 | -353.0 | -234.6 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 12.77 | 113.77 | -0.64 | 4.19 | 0.1495 | 927.0 | 609.0 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 13.19 | 113.58 | -0.82 | 5.13 | 0.1571 | -392.0 | -287.2 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 11.66 | 113.37 | -1.03 | 7.77 | 0.1311 | 323.0 | 306.3 | |
| 1.56 | 234.63 | 0.78 | 117.44 | 12.47 | 113.10 | -1.31 | 8.85 | 0.1457 | 881.9 | 615.0 | |
| 0.52 | 6.40 | 0.26 | 3.21 | 12.77 | 112.85 | -1.55 | 10.10 | 0.1515 | 899.0 | 765.2 | |
| 0.26 | -15.00 | 0.13 | -15.00 | 12.35 | 112.79 | -1.61 | 11.02 | 0.1445 | 995.3 | 999999 | |
| 0.78 | -16.00 | 0.39 | -16.00 | 12.77 | 112.67 | -1.74 | 11.26 | 0.1521 | 1036.4 | 999999 | |
| 0.00 | 2.51 | 0.00 | 1.25 | 9.92 | 112.56 | -1.84 | 17.72 | 0.1046 | -931.0 | -770.6 | |
| 13.92 | -15.00 | 6.97 | -15.00 | 12.14 | 112.49 | -1.92 | 13.36 | 0.1421 | 1460.7 | 999999 | |
| 1.82 | -15.00 | 0.91 | -15.00 | 12.80 | 112.21 | -2.19 | 14.07 | 0.1543 | 750.1 | 999999 | |
| 12.28 | -15.00 | 6.15 | -15.00 | 12.20 | 112.03 | -2.37 | 16.27 | 0.1451 | 1421.7 | 999999 | |
| 1.47 | -15.00 | 0.74 | -15.00 | 12.83 | 111.94 | -2.47 | 15.69 | 0.1560 | 767.0 | 999999 | |
| 18.08 | -15.00 | 9.06 | -15.00 | 12.50 | 111.85 | -2.56 | 16.85 | 0.1510 | 1206.5 | 999999 | |
| 0.86 | 5.62 | 0.43 | 2.82 | 12.95 | 111.36 | -3.05 | 18.88 | 0.1610 | 836.9 | 554.7 | |
| 0.26 | -25.00 | 0.13 | -25.00 | 12.80 | 111.33 | -3.08 | 19.37 | 0.1587 | 813.3 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 12.47 | 111.03 | -3.38 | 21.89 | 0.1552 | 652.0 | 523.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
