SDO HMI 2014-11-02 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.15 | 26.29 | 2.23 | 14.46 | -16.83 | 99.53 | -14.33 | 147.23 | 0.4326 | 82.4 | 247.2 | |
|
previous
or next observation for the same group /

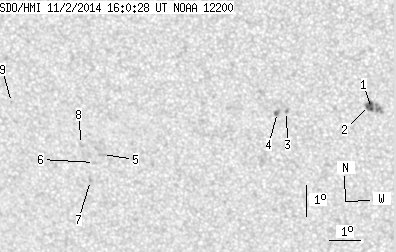

back to the solar disc SDO HMI 2014-11-02 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.21 | 13.32 | 0.65 | 7.17 | -16.30 | 103.19 | -10.66 | 153.07 | 0.3937 | 1001.7 | 819.7 | |
| 2.94 | -1.00 | 1.58 | -1.00 | -16.20 | 103.14 | -10.72 | 152.83 | 0.3928 | 950.5 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.85 | -16.43 | 100.49 | -13.36 | 147.72 | 0.4170 | 835.0 | 740.7 | |
| 0.00 | 2.85 | 0.00 | 1.56 | -16.47 | 100.20 | -13.65 | 147.22 | 0.4199 | 887.0 | 785.6 | |
| 0.00 | 2.85 | 0.00 | 1.62 | -17.93 | 94.37 | -19.48 | 139.64 | 0.4919 | -650.0 | -640.6 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -18.20 | 94.08 | -19.78 | 139.58 | 0.4978 | -641.0 | -565.8 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -18.78 | 93.87 | -19.98 | 140.09 | 0.5063 | -734.0 | -625.3 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -17.63 | 93.71 | -20.14 | 138.28 | 0.4952 | -443.0 | -524.7 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -16.35 | 91.53 | -22.33 | 133.53 | 0.5048 | -646.0 | -533.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
