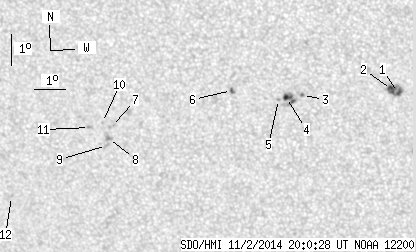

SDO HMI 2014-11-02 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.82 | 40.63 | 4.74 | 22.14 | -16.82 | 99.18 | -12.47 | 150.63 | 0.4168 | 53.0 | 161.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.82 | 12.88 | 0.97 | 6.88 | -16.31 | 103.53 | -8.12 | 158.84 | 0.3770 | 989.4 | 853.7 | |
| 3.89 | -1.00 | 2.08 | -1.00 | -16.21 | 103.31 | -8.33 | 158.24 | 0.3769 | 1050.0 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -16.44 | 100.50 | -11.14 | 152.20 | 0.3991 | 990.0 | 853.6 | |
| 2.16 | 11.41 | 1.17 | 6.18 | -16.51 | 99.99 | -11.65 | 151.23 | 0.4040 | 954.9 | 698.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -16.57 | 99.74 | -11.91 | 150.78 | 0.4069 | 655.0 | 441.1 | |
| 0.95 | 2.59 | 0.52 | 1.41 | -16.31 | 98.26 | -13.38 | 147.51 | 0.4154 | -857.9 | -681.0 | |
| 0.00 | 2.42 | 0.00 | 1.35 | -17.54 | 94.29 | -17.36 | 142.26 | 0.4667 | -774.0 | -651.9 | |
| 0.00 | 2.77 | 0.00 | 1.55 | -17.92 | 94.15 | -17.50 | 142.57 | 0.4727 | -919.0 | -787.2 | |
| 0.00 | 2.33 | 0.00 | 1.31 | -18.15 | 94.06 | -17.59 | 142.74 | 0.4762 | -666.0 | -588.8 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -17.41 | 94.00 | -17.64 | 141.65 | 0.4680 | -832.0 | -672.7 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -17.58 | 93.56 | -18.09 | 141.20 | 0.4742 | -742.0 | -594.4 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -19.88 | 90.68 | -20.97 | 140.20 | 0.5278 | -851.0 | -736.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
