SDO HMI 2014-11-02 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.74 | 75.06 | 14.88 | 50.37 | 5.69 | 69.16 | -42.49 | 86.18 | 0.6750 | -125.4 | 41.8 | |
|
previous
or next observation for the same group /

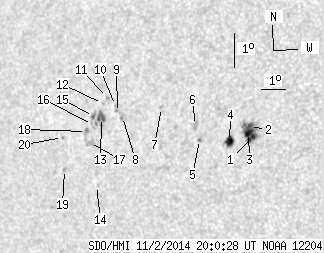

back to the solar disc SDO HMI 2014-11-02 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.80 | 26.80 | 2.43 | 17.12 | 5.62 | 72.45 | -39.20 | 86.29 | 0.6326 | -938.6 | -651.2 | |
| 2.51 | -1.00 | 1.60 | -1.00 | 5.94 | 72.34 | -39.30 | 85.77 | 0.6340 | -924.5 | 999999 | |
| 5.79 | -1.00 | 3.70 | -1.00 | 5.76 | 72.32 | -39.33 | 86.06 | 0.6343 | -1018.3 | 999999 | |
| 5.71 | 8.13 | 3.68 | 5.25 | 5.46 | 71.60 | -40.04 | 86.54 | 0.6439 | -706.1 | -392.6 | |
| 0.00 | 1.56 | 0.00 | 1.02 | 5.47 | 70.42 | -41.23 | 86.53 | 0.6596 | -631.0 | -575.8 | |
| 0.00 | 3.89 | 0.00 | 2.56 | 5.88 | 70.22 | -41.42 | 85.91 | 0.6621 | -823.0 | -622.7 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 6.34 | 68.80 | -42.84 | 85.22 | 0.6805 | -657.0 | -567.8 | |
| 0.00 | 1.73 | 0.00 | 1.20 | 6.00 | 67.22 | -44.42 | 85.74 | 0.7004 | 663.0 | 538.7 | |
| 0.00 | 1.56 | 0.00 | 1.08 | 6.11 | 67.00 | -44.65 | 85.59 | 0.7032 | 561.0 | 681.1 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 6.31 | 66.89 | -44.75 | 85.30 | 0.7045 | 733.0 | 659.7 | |
| 0.00 | 1.21 | 0.00 | 0.85 | 6.53 | 66.53 | -45.12 | 84.99 | 0.7090 | 812.0 | 668.6 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 6.34 | 66.34 | -45.31 | 85.26 | 0.7113 | 634.0 | 527.9 | |
| 4.15 | 13.14 | 2.92 | 9.25 | 5.92 | 66.34 | -45.31 | 85.85 | 0.7113 | 847.6 | 588.4 | |
| 0.00 | 0.35 | 0.00 | 0.24 | 3.89 | 66.30 | -45.35 | 88.71 | 0.7123 | -540.0 | -555.0 | |
| 0.78 | -13.00 | 0.55 | -13.00 | 5.93 | 66.00 | -45.65 | 85.83 | 0.7155 | 513.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.28 | 5.70 | 65.98 | -45.67 | 86.17 | 0.7157 | 377.0 | 377.3 | |
| 0.00 | 6.92 | 0.00 | 4.90 | 5.15 | 65.90 | -45.75 | 86.92 | 0.7167 | 749.0 | 525.0 | |
| 0.00 | 2.68 | 0.00 | 1.90 | 5.47 | 65.74 | -45.90 | 86.47 | 0.7186 | 571.0 | 430.5 | |
| 0.00 | 1.47 | 0.00 | 1.06 | 4.30 | 64.89 | -46.76 | 88.08 | 0.7291 | 712.0 | 596.4 | |
| 0.00 | 1.04 | 0.00 | 0.75 | 5.24 | 64.72 | -46.93 | 86.78 | 0.7309 | 585.0 | 555.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
