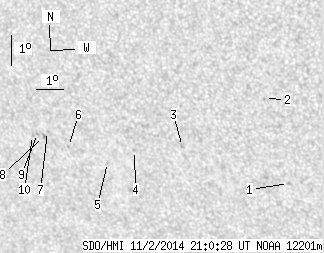

SDO HMI 2014-11-02 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.84 | 0.00 | 7.69 | -19.82 | 78.46 | -32.63 | 128.20 | 0.6463 | 670.8 | 555.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-02 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.85 | -20.90 | 84.72 | -26.37 | 135.17 | 0.5908 | 769.0 | 632.2 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -18.15 | 84.37 | -26.73 | 131.13 | 0.5696 | 573.0 | 529.3 | |
| 0.00 | 1.21 | 0.00 | 0.76 | -19.82 | 81.12 | -29.98 | 130.27 | 0.6183 | 602.0 | 528.2 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -20.02 | 79.30 | -31.79 | 128.96 | 0.6389 | 879.0 | 664.9 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -20.46 | 78.18 | -32.91 | 128.61 | 0.6538 | 641.0 | 560.0 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -19.99 | 76.81 | -34.28 | 126.95 | 0.6647 | 773.0 | 607.3 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -19.54 | 76.12 | -34.98 | 125.85 | 0.6689 | 722.0 | 594.2 | |
| 0.00 | 1.73 | 0.00 | 1.15 | -19.71 | 75.92 | -35.17 | 125.93 | 0.6721 | 758.0 | 601.8 | |
| 0.00 | 1.73 | 0.00 | 1.16 | -19.62 | 75.71 | -35.38 | 125.66 | 0.6737 | 471.0 | 450.1 | |
| 0.00 | 1.04 | 0.00 | 0.70 | -19.69 | 75.49 | -35.60 | 125.61 | 0.6764 | 520.0 | 404.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
