SDO HMI 2014-11-02 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 128.58 | 655.62 | 64.49 | 328.83 | 12.08 | 114.87 | 3.77 | 336.14 | 0.1570 | -143.7 | -27.1 | |
|
previous
or next observation for the same group /

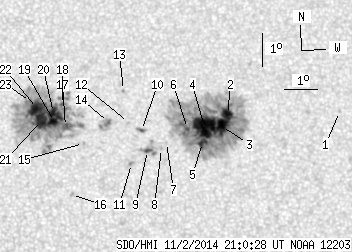

back to the solar disc SDO HMI 2014-11-02 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.53 | 12.36 | 120.91 | 9.82 | 310.55 | 0.2203 | -815.0 | -572.2 | |
| 9.77 | 361.71 | 4.92 | 181.77 | 12.31 | 117.47 | 6.38 | 322.43 | 0.1788 | -1160.9 | -421.8 | |
| 15.13 | -2.00 | 7.61 | -2.00 | 11.95 | 117.28 | 6.18 | 321.99 | 0.1719 | -1428.7 | 999999 | |
| 33.64 | -2.00 | 16.90 | -2.00 | 11.95 | 116.76 | 5.66 | 324.39 | 0.1666 | -1465.1 | 999999 | |
| 5.36 | -2.00 | 2.69 | -2.00 | 11.47 | 116.68 | 5.59 | 322.95 | 0.1593 | -1231.5 | 999999 | |
| 1.73 | -2.00 | 0.87 | -2.00 | 11.90 | 116.24 | 5.14 | 326.75 | 0.1607 | -1081.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.48 | 115.59 | 4.50 | 328.74 | 0.1487 | -570.0 | -373.3 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.30 | 115.43 | 4.34 | 328.98 | 0.1447 | -882.0 | -602.4 | |
| 2.16 | 11.59 | 1.08 | 5.80 | 11.25 | 115.01 | 3.91 | 331.32 | 0.1402 | -1113.1 | -530.6 | |
| 0.78 | 3.89 | 0.39 | 1.95 | 11.85 | 114.83 | 3.74 | 334.32 | 0.1480 | 762.0 | 597.8 | |
| 0.00 | 2.33 | 0.00 | 1.17 | 10.86 | 114.52 | 3.42 | 333.11 | 0.1303 | -1024.0 | -789.4 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 12.09 | 114.44 | 3.35 | 337.36 | 0.1491 | 878.0 | 605.3 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 13.05 | 114.30 | 3.21 | 340.44 | 0.1637 | -927.0 | -795.1 | |
| 0.78 | 11.07 | 0.39 | 5.54 | 12.09 | 113.83 | 2.74 | 341.15 | 0.1454 | 1019.9 | 701.9 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.47 | 113.07 | 1.97 | 345.01 | 0.1311 | -782.0 | -592.5 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 9.94 | 112.69 | 1.60 | 344.57 | 0.1038 | -924.0 | -714.9 | |
| 3.80 | 257.17 | 1.90 | 128.66 | 11.98 | 112.52 | 1.43 | 349.73 | 0.1377 | 771.2 | 569.8 | |
| 1.21 | -17.00 | 0.61 | -17.00 | 12.64 | 112.44 | 1.34 | 351.11 | 0.1488 | 906.7 | 999999 | |
| 10.38 | -17.00 | 5.19 | -17.00 | 12.13 | 112.19 | 1.10 | 352.24 | 0.1394 | 1459.6 | 999999 | |
| 10.03 | -17.00 | 5.02 | -17.00 | 12.40 | 112.16 | 1.07 | 352.70 | 0.1440 | 1247.8 | 999999 | |
| 16.43 | -17.00 | 8.22 | -17.00 | 12.16 | 111.80 | 0.70 | 355.04 | 0.1392 | 1418.5 | 999999 | |
| 17.12 | -17.00 | 8.57 | -17.00 | 12.52 | 111.67 | 0.58 | 356.06 | 0.1453 | 1163.6 | 999999 | |
| 0.26 | -17.00 | 0.13 | -17.00 | 12.73 | 111.46 | 0.37 | 357.56 | 0.1487 | 914.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
