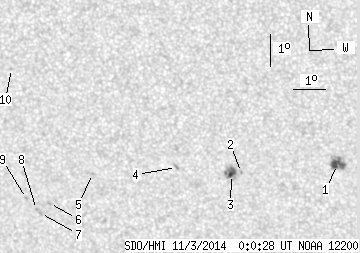

SDO HMI 2014-11-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.17 | 39.35 | 4.89 | 21.14 | -16.54 | 100.31 | -9.13 | 157.22 | 0.3893 | 22.8 | 323.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.18 | 16.26 | 3.82 | 8.64 | -16.28 | 103.51 | -5.93 | 164.17 | 0.3650 | 1030.6 | 726.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -16.56 | 100.49 | -8.94 | 157.16 | 0.3855 | 890.0 | 701.8 | |
| 1.99 | 12.54 | 1.07 | 6.73 | -16.63 | 100.18 | -9.26 | 156.51 | 0.3885 | 1135.1 | 857.3 | |
| 0.00 | 2.16 | 0.00 | 1.17 | -16.42 | 98.45 | -10.98 | 152.51 | 0.3975 | -774.0 | -593.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -16.66 | 95.77 | -13.66 | 147.42 | 0.4221 | -860.0 | -606.9 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -17.64 | 94.31 | -15.13 | 146.08 | 0.4475 | -861.0 | -739.9 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -17.97 | 93.99 | -15.45 | 145.95 | 0.4544 | -925.0 | -794.5 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -17.84 | 93.87 | -15.57 | 145.59 | 0.4539 | -773.0 | -765.2 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -17.49 | 93.58 | -15.86 | 144.63 | 0.4521 | -893.0 | -678.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -13.39 | 93.43 | -16.01 | 138.16 | 0.4039 | -662.0 | -610.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
