SDO HMI 2014-11-03 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.43 | 643.74 | 69.58 | 323.95 | 12.03 | 114.92 | 6.04 | 324.56 | 0.1757 | -5.5 | -55.6 | |
|
previous
or next observation for the same group /

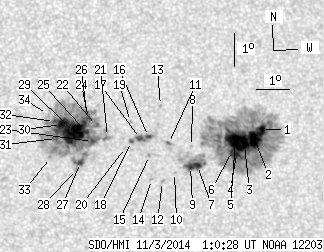

back to the solar disc SDO HMI 2014-11-03 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.71 | 348.86 | 2.89 | 176.16 | 12.29 | 117.56 | 8.68 | 313.84 | 0.2053 | -1157.1 | -429.8 | |
| 19.03 | -1.00 | 9.62 | -1.00 | 12.03 | 117.34 | 8.45 | 313.59 | 0.1995 | -1299.0 | 999999 | |
| 6.83 | -1.00 | 3.45 | -1.00 | 11.82 | 117.03 | 8.14 | 313.88 | 0.1932 | -1635.6 | 999999 | |
| 6.49 | -1.00 | 3.27 | -1.00 | 11.58 | 116.77 | 7.89 | 313.84 | 0.1873 | -1370.1 | 999999 | |
| 22.32 | -1.00 | 11.26 | -1.00 | 11.97 | 116.75 | 7.87 | 315.41 | 0.1917 | -1441.1 | 999999 | |
| 2.94 | -1.00 | 1.48 | -1.00 | 11.67 | 116.65 | 7.77 | 314.63 | 0.1869 | -1345.0 | 999999 | |
| 4.33 | 32.35 | 2.17 | 16.25 | 11.24 | 115.57 | 6.69 | 317.11 | 0.1686 | -1119.5 | -472.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 11.81 | 115.40 | 6.52 | 320.08 | 0.1739 | -342.0 | -289.3 | |
| 4.07 | -7.00 | 2.04 | -7.00 | 11.21 | 115.36 | 6.47 | 317.91 | 0.1657 | -1073.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.03 | 114.86 | 5.98 | 319.40 | 0.1579 | -739.0 | -543.3 | |
| 0.43 | 2.42 | 0.22 | 1.22 | 11.90 | 114.70 | 5.82 | 323.57 | 0.1678 | 697.8 | 553.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 10.77 | 114.49 | 5.61 | 320.05 | 0.1502 | -768.0 | -597.7 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 13.05 | 114.48 | 5.60 | 328.33 | 0.1819 | -770.0 | -618.2 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 10.83 | 114.16 | 5.28 | 322.02 | 0.1475 | 614.0 | 460.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.55 | 114.11 | 5.23 | 325.13 | 0.1569 | 824.0 | 678.9 | |
| 1.56 | 13.41 | 0.78 | 6.73 | 12.12 | 114.10 | 5.21 | 327.24 | 0.1649 | 929.7 | 655.0 | |
| 2.60 | -16.00 | 1.30 | -16.00 | 12.06 | 113.85 | 4.97 | 328.29 | 0.1618 | 1085.1 | 999999 | |
| 0.87 | -16.00 | 0.43 | -16.00 | 11.97 | 113.57 | 4.69 | 329.44 | 0.1580 | 1085.3 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 12.57 | 113.55 | 4.67 | 331.41 | 0.1668 | 748.0 | 610.2 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 11.79 | 113.39 | 4.50 | 329.85 | 0.1537 | 655.0 | 462.8 | |
| 0.00 | 5.71 | 0.00 | 2.86 | 12.13 | 112.84 | 3.96 | 333.93 | 0.1544 | 794.0 | 572.0 | |
| 0.95 | 226.29 | 0.48 | 113.35 | 12.46 | 112.51 | 3.63 | 336.73 | 0.1572 | 726.8 | 565.8 | |
| 1.73 | -22.00 | 0.87 | -22.00 | 11.98 | 112.39 | 3.50 | 336.20 | 0.1487 | 923.2 | 999999 | |
| 1.73 | -22.00 | 0.87 | -22.00 | 12.67 | 112.27 | 3.39 | 338.63 | 0.1590 | 886.2 | 999999 | |
| 2.42 | -22.00 | 1.21 | -22.00 | 12.28 | 112.21 | 3.32 | 338.07 | 0.1523 | 1031.8 | 999999 | |
| 0.87 | -22.00 | 0.43 | -22.00 | 12.85 | 112.21 | 3.33 | 339.38 | 0.1615 | 712.3 | 999999 | |
| 2.51 | -22.00 | 1.25 | -22.00 | 11.35 | 112.01 | 3.13 | 336.76 | 0.1362 | 1041.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 11.14 | 111.89 | 3.00 | 336.97 | 0.1320 | 917.0 | 782.3 | |
| 36.24 | -22.00 | 18.15 | -22.00 | 12.25 | 111.84 | 2.96 | 340.22 | 0.1496 | 1389.0 | 999999 | |
| 12.98 | -22.00 | 6.50 | -22.00 | 12.49 | 111.45 | 2.56 | 343.17 | 0.1514 | 1149.0 | 999999 | |
| 1.56 | -22.00 | 0.78 | -22.00 | 12.07 | 111.29 | 2.41 | 343.32 | 0.1437 | 1063.1 | 999999 | |
| 0.26 | -22.00 | 0.13 | -22.00 | 12.59 | 111.24 | 2.35 | 344.65 | 0.1519 | 895.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 11.51 | 111.10 | 2.22 | 343.39 | 0.1333 | 908.0 | 776.9 | |
| 0.00 | 2.94 | 0.00 | 1.47 | 12.80 | 111.02 | 2.14 | 346.32 | 0.1546 | 206.0 | 331.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
