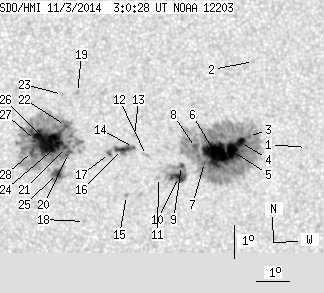

SDO HMI 2014-11-03 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.83 | 669.96 | 69.45 | 337.84 | 12.04 | 114.80 | 7.02 | 320.48 | 0.1860 | -95.3 | -28.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.44 | 12.06 | 119.64 | 11.85 | 304.57 | 0.2451 | -693.0 | -541.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 14.67 | 118.11 | 10.33 | 316.55 | 0.2533 | -747.0 | -583.8 | |
| 0.52 | 345.63 | 0.26 | 175.07 | 12.41 | 117.86 | 10.07 | 310.16 | 0.2245 | -711.0 | -431.7 | |
| 7.01 | -3.00 | 3.56 | -3.00 | 12.24 | 117.60 | 9.82 | 310.24 | 0.2193 | -1141.2 | 999999 | |
| 16.18 | -3.00 | 8.20 | -3.00 | 11.97 | 117.35 | 9.56 | 310.01 | 0.2131 | -1311.0 | 999999 | |
| 37.20 | -3.00 | 18.83 | -3.00 | 11.92 | 116.82 | 9.04 | 311.38 | 0.2057 | -1460.0 | 999999 | |
| 1.04 | -3.00 | 0.52 | -3.00 | 11.65 | 116.47 | 8.69 | 311.46 | 0.1983 | -913.4 | 999999 | |
| 2.16 | -3.00 | 1.09 | -3.00 | 12.10 | 116.21 | 8.43 | 314.02 | 0.2002 | -1064.2 | 999999 | |
| 1.30 | 33.65 | 0.65 | 16.95 | 11.57 | 115.77 | 7.98 | 313.52 | 0.1884 | -962.1 | -513.6 | |
| 9.52 | -9.00 | 4.79 | -9.00 | 11.21 | 115.66 | 7.88 | 312.44 | 0.1830 | -1077.7 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 11.22 | 115.05 | 7.27 | 314.74 | 0.1755 | -778.0 | -538.0 | |
| 0.00 | 3.03 | 0.00 | 1.52 | 11.88 | 114.70 | 6.92 | 318.74 | 0.1795 | 455.0 | 358.5 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 12.48 | 114.35 | 6.57 | 322.36 | 0.1836 | 790.0 | 648.2 | |
| 0.43 | 12.54 | 0.22 | 6.31 | 12.12 | 114.31 | 6.53 | 321.27 | 0.1784 | 783.4 | 588.2 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 10.69 | 114.06 | 6.28 | 316.60 | 0.1571 | 616.0 | 501.1 | |
| 6.32 | -14.00 | 3.18 | -14.00 | 12.07 | 113.97 | 6.19 | 322.53 | 0.1740 | 976.4 | 999999 | |
| 0.78 | 2.85 | 0.39 | 1.43 | 11.95 | 113.57 | 5.79 | 323.93 | 0.1683 | 990.0 | 757.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 9.92 | 112.77 | 4.99 | 319.47 | 0.1324 | -679.0 | -434.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.79 | 112.63 | 4.85 | 333.84 | 0.1870 | 869.0 | 666.7 | |
| 2.25 | 261.71 | 1.13 | 131.24 | 11.96 | 112.32 | 4.54 | 330.26 | 0.1567 | 888.5 | 545.9 | |
| 0.26 | -20.00 | 0.13 | -20.00 | 12.14 | 112.23 | 4.45 | 331.31 | 0.1587 | 1058.3 | 999999 | |
| 1.30 | -20.00 | 0.65 | -20.00 | 12.80 | 112.25 | 4.46 | 333.18 | 0.1688 | 793.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.73 | 112.17 | 4.39 | 335.90 | 0.1828 | 962.0 | 769.2 | |
| 6.40 | -20.00 | 3.21 | -20.00 | 12.23 | 112.02 | 4.24 | 332.74 | 0.1584 | 1354.7 | 999999 | |
| 5.28 | -20.00 | 2.64 | -20.00 | 11.36 | 111.98 | 4.19 | 330.19 | 0.1448 | 1064.5 | 999999 | |
| 35.64 | -20.00 | 17.88 | -20.00 | 12.32 | 111.66 | 3.87 | 335.03 | 0.1570 | 1359.0 | 999999 | |
| 2.08 | -20.00 | 1.04 | -20.00 | 12.36 | 111.32 | 3.54 | 337.04 | 0.1552 | 1191.2 | 999999 | |
| 2.16 | -20.00 | 1.08 | -20.00 | 12.03 | 111.23 | 3.44 | 336.73 | 0.1493 | 1036.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
