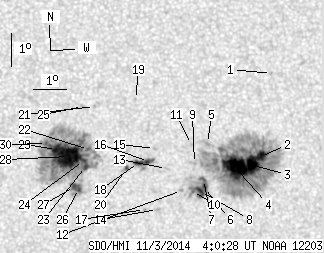

SDO HMI 2014-11-03 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.25 | 666.43 | 69.74 | 336.47 | 12.01 | 114.74 | 7.50 | 318.42 | 0.1911 | -107.5 | -45.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.58 | 14.71 | 118.07 | 10.83 | 315.36 | 0.2598 | -710.0 | -534.7 | |
| 8.57 | 372.55 | 4.35 | 188.91 | 12.22 | 117.61 | 10.37 | 308.70 | 0.2265 | -1125.8 | -445.4 | |
| 17.04 | -2.00 | 8.65 | -2.00 | 11.95 | 117.35 | 10.11 | 308.43 | 0.2203 | -1308.8 | 999999 | |
| 35.04 | -2.00 | 17.76 | -2.00 | 11.90 | 116.83 | 9.59 | 309.69 | 0.2128 | -1513.0 | 999999 | |
| 0.00 | 4.41 | 0.00 | 2.24 | 12.63 | 115.99 | 8.75 | 314.86 | 0.2104 | -206.0 | -233.6 | |
| 3.11 | -2.00 | 1.57 | -2.00 | 11.31 | 115.85 | 8.62 | 310.38 | 0.1937 | -1113.4 | 999999 | |
| 1.64 | -2.00 | 0.83 | -2.00 | 11.55 | 115.83 | 8.59 | 311.41 | 0.1961 | -1002.1 | 999999 | |
| 6.06 | -2.00 | 3.06 | -2.00 | 11.19 | 115.73 | 8.49 | 310.31 | 0.1908 | -1037.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 12.03 | 115.57 | 8.33 | 314.11 | 0.1983 | -852.0 | -610.9 | |
| 0.26 | -2.00 | 0.13 | -2.00 | 11.19 | 115.48 | 8.24 | 311.13 | 0.1876 | -1119.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.60 | 115.50 | 8.26 | 316.41 | 0.2042 | -781.0 | -590.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 11.23 | 115.15 | 7.91 | 312.43 | 0.1837 | -981.0 | -801.8 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 11.89 | 114.71 | 7.47 | 316.67 | 0.1862 | 311.0 | 201.4 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 10.67 | 114.40 | 7.16 | 312.83 | 0.1678 | -558.0 | -415.9 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 12.50 | 114.36 | 7.12 | 320.20 | 0.1899 | 753.0 | 507.0 | |
| 3.20 | 12.20 | 1.61 | 6.14 | 12.11 | 114.16 | 6.92 | 319.60 | 0.1827 | 934.5 | 356.8 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 10.67 | 114.00 | 6.76 | 314.45 | 0.1629 | 730.0 | 543.4 | |
| 3.55 | -16.00 | 1.79 | -16.00 | 12.08 | 113.85 | 6.62 | 320.76 | 0.1789 | 1062.0 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 13.98 | 113.81 | 6.58 | 326.92 | 0.2046 | -742.0 | -523.0 | |
| 0.95 | 2.94 | 0.48 | 1.48 | 11.90 | 113.48 | 6.24 | 321.72 | 0.1726 | 888.2 | 557.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.78 | 112.55 | 5.31 | 331.72 | 0.1905 | 820.0 | 629.3 | |
| 1.30 | 259.64 | 0.65 | 130.28 | 12.48 | 112.33 | 5.10 | 329.07 | 0.1695 | 643.1 | 545.2 | |
| 2.34 | -22.00 | 1.17 | -22.00 | 11.97 | 112.23 | 4.99 | 327.93 | 0.1611 | 938.8 | 999999 | |
| 2.51 | -22.00 | 1.26 | -22.00 | 12.16 | 112.17 | 4.94 | 328.82 | 0.1632 | 1019.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.78 | 112.18 | 4.94 | 333.40 | 0.1877 | 1027.0 | 722.5 | |
| 2.16 | -22.00 | 1.08 | -22.00 | 11.32 | 112.01 | 4.77 | 326.79 | 0.1495 | 960.7 | 999999 | |
| 3.03 | -22.00 | 1.52 | -22.00 | 11.38 | 111.89 | 4.65 | 327.68 | 0.1492 | 1205.5 | 999999 | |
| 38.41 | -22.00 | 19.28 | -22.00 | 12.28 | 111.72 | 4.48 | 331.59 | 0.1612 | 1389.2 | 999999 | |
| 7.70 | -22.00 | 3.86 | -22.00 | 12.49 | 111.36 | 4.12 | 334.15 | 0.1616 | 1183.3 | 999999 | |
| 1.38 | -22.00 | 0.69 | -22.00 | 12.67 | 111.05 | 3.82 | 336.29 | 0.1622 | 798.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
