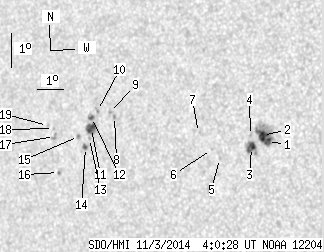

SDO HMI 2014-11-03 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.73 | 69.56 | 15.35 | 43.54 | 5.62 | 69.58 | -37.66 | 86.19 | 0.6106 | -41.5 | -41.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.37 | 26.91 | 2.02 | 16.16 | 5.61 | 72.82 | -34.42 | 86.18 | 0.5660 | -1002.1 | -589.7 | |
| 7.61 | -1.00 | 4.58 | -1.00 | 5.78 | 72.63 | -34.61 | 85.88 | 0.5688 | -975.0 | 999999 | |
| 5.19 | 11.25 | 3.13 | 6.79 | 5.41 | 72.25 | -34.99 | 86.54 | 0.5741 | -866.6 | -570.6 | |
| 0.00 | 0.95 | 0.00 | 0.58 | 5.76 | 72.19 | -35.05 | 85.92 | 0.5750 | -514.0 | -426.3 | |
| 0.00 | 0.69 | 0.00 | 0.42 | 5.03 | 71.10 | -36.14 | 87.19 | 0.5905 | -787.0 | -523.9 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 5.28 | 70.78 | -36.46 | 86.76 | 0.5949 | -634.0 | -495.0 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 5.77 | 70.26 | -36.98 | 85.95 | 0.6022 | -459.0 | -506.2 | |
| 0.00 | 1.38 | 0.00 | 0.90 | 6.10 | 67.01 | -40.23 | 85.49 | 0.6465 | 824.0 | 791.0 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 6.21 | 66.81 | -40.43 | 85.32 | 0.6492 | 751.0 | 663.3 | |
| 0.00 | 1.90 | 0.00 | 1.25 | 6.25 | 66.33 | -40.91 | 85.27 | 0.6555 | 698.0 | 604.7 | |
| 5.88 | 8.39 | 3.86 | 5.51 | 5.70 | 66.14 | -41.10 | 86.11 | 0.6580 | 818.1 | 611.4 | |
| 1.21 | 3.37 | 0.79 | 2.22 | 6.03 | 66.11 | -41.13 | 85.61 | 0.6584 | 693.9 | 459.4 | |
| 0.00 | 0.95 | 0.00 | 0.62 | 5.40 | 66.08 | -41.16 | 86.57 | 0.6587 | 697.0 | 602.6 | |
| 1.12 | 3.03 | 0.74 | 1.99 | 5.13 | 65.94 | -41.29 | 86.99 | 0.6605 | 766.8 | 601.2 | |
| 0.00 | 1.82 | 0.00 | 1.20 | 5.44 | 65.64 | -41.60 | 86.51 | 0.6645 | 610.0 | 447.0 | |
| 0.35 | 1.30 | 0.23 | 0.87 | 4.33 | 64.92 | -42.32 | 88.15 | 0.6740 | 595.5 | 507.9 | |
| 0.00 | 3.20 | 0.00 | 2.15 | 5.40 | 64.67 | -42.56 | 86.57 | 0.6770 | 720.0 | 585.6 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 5.63 | 64.61 | -42.63 | 86.22 | 0.6777 | 651.0 | 510.8 | |
| 0.00 | 1.30 | 0.00 | 0.87 | 5.71 | 64.36 | -42.88 | 86.11 | 0.6810 | 463.0 | 336.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
