SDO HMI 2014-11-03 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.74 | 61.94 | 10.86 | 38.13 | 5.64 | 69.72 | -36.43 | 86.12 | 0.5935 | 9.8 | -83.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

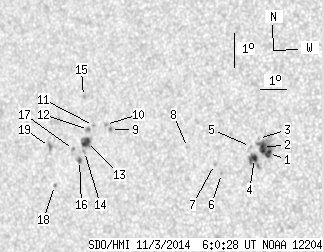

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.29 | 22.58 | 1.95 | 13.37 | 5.61 | 72.92 | -33.23 | 86.11 | 0.5487 | -1054.6 | -685.1 | |
| 5.36 | -1.00 | 3.18 | -1.00 | 5.78 | 72.69 | -33.45 | 85.81 | 0.5521 | -985.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 6.04 | 72.53 | -33.61 | 85.34 | 0.5545 | -411.0 | -358.2 | |
| 2.68 | 10.04 | 1.60 | 5.97 | 5.44 | 72.43 | -33.72 | 86.43 | 0.5558 | -913.7 | -595.1 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 5.79 | 72.26 | -33.88 | 85.80 | 0.5583 | -572.0 | -439.5 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 4.95 | 71.26 | -34.88 | 87.32 | 0.5726 | -642.0 | -525.1 | |
| 0.00 | 0.69 | 0.00 | 0.42 | 5.21 | 70.99 | -35.15 | 86.87 | 0.5765 | -807.0 | -599.9 | |
| 0.00 | 1.04 | 0.00 | 0.64 | 5.67 | 69.96 | -36.18 | 86.08 | 0.5911 | -590.0 | -473.1 | |
| 0.00 | 1.38 | 0.00 | 0.88 | 6.08 | 67.02 | -39.13 | 85.48 | 0.6318 | 843.0 | 746.2 | |
| 0.00 | 1.38 | 0.00 | 0.88 | 6.22 | 66.81 | -39.34 | 85.26 | 0.6346 | 841.0 | 720.9 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 6.17 | 66.35 | -39.80 | 85.35 | 0.6408 | 857.0 | 700.3 | |
| 0.35 | 1.99 | 0.22 | 1.28 | 6.04 | 66.16 | -39.98 | 85.56 | 0.6432 | 765.5 | 636.0 | |
| 5.02 | 7.87 | 3.24 | 5.09 | 5.65 | 66.12 | -40.03 | 86.16 | 0.6438 | 833.5 | 544.6 | |
| 0.00 | 1.47 | 0.00 | 0.95 | 5.38 | 66.06 | -40.08 | 86.59 | 0.6445 | 623.0 | 576.4 | |
| 0.00 | 1.56 | 0.00 | 1.01 | 7.02 | 65.87 | -40.27 | 84.06 | 0.6473 | 632.0 | 629.8 | |
| 1.04 | 2.34 | 0.67 | 1.51 | 5.11 | 65.89 | -40.26 | 87.02 | 0.6469 | 784.2 | 621.9 | |
| 0.00 | 1.30 | 0.00 | 0.84 | 5.42 | 65.63 | -40.52 | 86.52 | 0.6503 | 537.0 | 428.9 | |
| 0.00 | 1.38 | 0.00 | 0.91 | 4.32 | 64.95 | -41.19 | 88.20 | 0.6594 | 633.0 | 520.2 | |
| 0.00 | 3.29 | 0.00 | 2.17 | 5.47 | 64.67 | -41.48 | 86.45 | 0.6629 | 792.0 | 626.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
