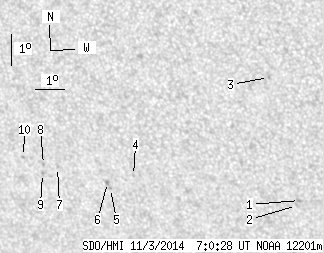

SDO HMI 2014-11-03 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.10 | 0.00 | 7.33 | -20.09 | 79.89 | -25.71 | 135.05 | 0.5766 | 692.3 | 625.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.96 | -20.89 | 85.23 | -20.37 | 142.20 | 0.5326 | 851.0 | 755.1 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -21.06 | 85.11 | -20.49 | 142.24 | 0.5356 | 657.0 | 575.8 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -16.93 | 84.71 | -20.89 | 136.16 | 0.4945 | 781.0 | 652.1 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -20.24 | 79.59 | -26.01 | 134.63 | 0.5803 | 561.0 | 493.4 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -20.69 | 78.69 | -26.91 | 134.28 | 0.5936 | 677.0 | 610.9 | |
| 0.00 | 2.25 | 0.00 | 1.38 | -20.50 | 78.62 | -26.98 | 133.96 | 0.5925 | 800.0 | 673.6 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -20.07 | 76.91 | -28.69 | 131.71 | 0.6063 | 897.0 | 745.5 | |
| 0.00 | 1.30 | 0.00 | 0.81 | -19.99 | 76.42 | -29.18 | 131.15 | 0.6107 | 857.0 | 712.5 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -20.28 | 76.32 | -29.28 | 131.45 | 0.6142 | 543.0 | 520.5 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -19.75 | 75.74 | -29.86 | 130.22 | 0.6159 | 299.0 | 392.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
