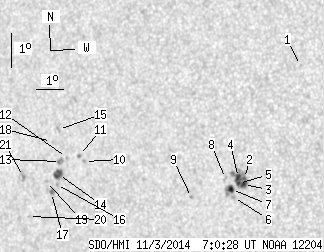

SDO HMI 2014-11-03 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.00 | 59.26 | 10.91 | 36.38 | 5.74 | 69.50 | -36.10 | 85.93 | 0.5889 | 37.4 | 29.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.50 | 9.24 | 74.67 | -30.93 | 78.98 | 0.5189 | -584.0 | -444.9 | |
| 1.04 | 19.81 | 0.61 | 11.66 | 5.81 | 72.97 | -32.63 | 85.72 | 0.5401 | -1115.6 | -720.7 | |
| 3.03 | -2.00 | 1.78 | -2.00 | 5.63 | 72.94 | -32.66 | 86.05 | 0.5404 | -1080.5 | 999999 | |
| 3.63 | -2.00 | 2.14 | -2.00 | 5.83 | 72.75 | -32.85 | 85.69 | 0.5433 | -995.1 | 999999 | |
| 1.56 | -2.00 | 0.92 | -2.00 | 5.65 | 72.76 | -32.83 | 86.02 | 0.5430 | -974.2 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.82 | 5.23 | 72.61 | -32.99 | 86.80 | 0.5452 | -763.0 | -634.2 | |
| 2.86 | 7.44 | 1.69 | 4.40 | 5.46 | 72.53 | -33.07 | 86.37 | 0.5465 | -736.3 | -537.7 | |
| 0.00 | 1.82 | 0.00 | 1.08 | 5.78 | 72.29 | -33.31 | 85.79 | 0.5500 | -498.0 | -366.3 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 5.17 | 71.10 | -34.50 | 86.92 | 0.5670 | -716.0 | -554.8 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 6.07 | 67.05 | -38.55 | 85.47 | 0.6239 | 868.0 | 767.1 | |
| 0.00 | 1.47 | 0.00 | 0.93 | 6.24 | 66.84 | -38.76 | 85.20 | 0.6268 | 766.0 | 671.0 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 6.16 | 66.35 | -39.25 | 85.35 | 0.6335 | 822.0 | 705.8 | |
| 0.00 | 3.29 | 0.00 | 2.11 | 6.03 | 66.12 | -39.47 | 85.56 | 0.6364 | 755.0 | 582.5 | |
| 4.93 | 7.96 | 3.16 | 5.10 | 5.64 | 66.08 | -39.52 | 86.17 | 0.6370 | 808.6 | 582.0 | |
| 0.00 | 2.16 | 0.00 | 1.39 | 6.98 | 65.96 | -39.64 | 84.07 | 0.6389 | 793.0 | 623.3 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 5.34 | 66.03 | -39.57 | 86.65 | 0.6377 | 754.0 | 636.2 | |
| 0.95 | 3.03 | 0.61 | 1.95 | 5.09 | 65.85 | -39.75 | 87.03 | 0.6401 | 794.7 | 627.0 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 6.61 | 65.72 | -39.88 | 84.66 | 0.6420 | 424.0 | 331.1 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 5.41 | 65.63 | -39.97 | 86.53 | 0.6430 | 598.0 | 400.4 | |
| 0.00 | 0.78 | 0.00 | 0.51 | 4.34 | 65.00 | -40.60 | 88.18 | 0.6515 | 702.0 | 586.2 | |
| 0.00 | 3.37 | 0.00 | 2.21 | 5.52 | 64.72 | -40.88 | 86.37 | 0.6551 | 844.0 | 686.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
