SDO HMI 2014-11-03 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.65 | 0.00 | 10.70 | -20.07 | 79.25 | -25.80 | 134.89 | 0.5770 | 741.2 | 605.2 | |
|
previous
or next observation for the same group /

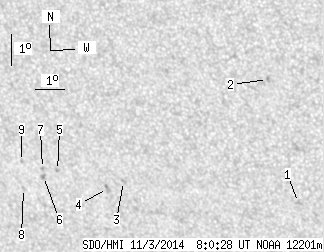

back to the solar disc SDO HMI 2014-11-03 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.77 | 0.00 | 1.61 | -20.85 | 85.24 | -19.82 | 142.88 | 0.5271 | 930.0 | 699.4 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -16.89 | 84.70 | -20.35 | 136.83 | 0.4884 | 788.0 | 673.4 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -20.33 | 79.28 | -25.77 | 135.00 | 0.5788 | 676.0 | 574.2 | |
| 0.00 | 3.72 | 0.00 | 2.27 | -20.58 | 78.67 | -26.38 | 134.67 | 0.5873 | 802.0 | 646.3 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -20.05 | 76.98 | -28.07 | 132.28 | 0.5997 | 726.0 | 609.5 | |
| 0.00 | 2.25 | 0.00 | 1.40 | -20.26 | 76.44 | -28.62 | 132.04 | 0.6072 | 729.0 | 619.1 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -20.00 | 76.45 | -28.60 | 131.71 | 0.6048 | 854.0 | 653.9 | |
| 0.00 | 1.47 | 0.00 | 0.93 | -20.69 | 75.62 | -29.43 | 131.82 | 0.6191 | 535.0 | 384.0 | |
| 0.00 | 1.30 | 0.00 | 0.81 | -19.80 | 75.73 | -29.32 | 130.77 | 0.6106 | 631.0 | 442.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
