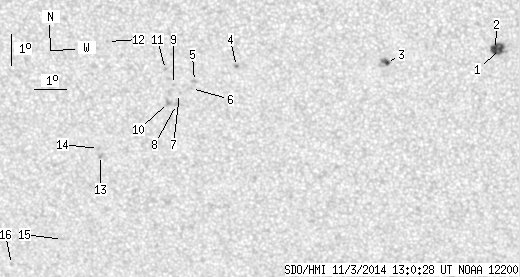

SDO HMI 2014-11-03 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.41 | 39.94 | 6.04 | 21.48 | -17.59 | 97.70 | -4.62 | 169.50 | 0.3874 | -204.2 | -221.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.89 | 13.75 | 2.06 | 7.27 | -16.37 | 103.87 | 1.55 | 184.24 | 0.3528 | 1088.3 | 714.6 | |
| 5.62 | -1.00 | 2.97 | -1.00 | -16.40 | 103.71 | 1.40 | 183.81 | 0.3531 | 1007.9 | 999999 | |
| 1.90 | 6.57 | 1.01 | 3.49 | -16.81 | 100.33 | -1.99 | 174.69 | 0.3606 | 1119.9 | 809.1 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -16.96 | 95.65 | -6.67 | 162.83 | 0.3778 | -983.0 | -803.6 | |
| 0.00 | 1.99 | 0.00 | 1.07 | -17.45 | 94.31 | -8.01 | 160.11 | 0.3922 | -935.0 | -758.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -17.68 | 94.21 | -8.11 | 160.08 | 0.3962 | -844.0 | -697.9 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -17.84 | 93.82 | -8.50 | 159.36 | 0.4008 | -626.0 | -587.7 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -18.19 | 93.71 | -8.61 | 159.44 | 0.4067 | -690.0 | -643.0 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -17.55 | 93.65 | -8.67 | 158.70 | 0.3975 | -765.0 | -657.6 | |
| 0.00 | 3.63 | 0.00 | 1.97 | -18.13 | 93.46 | -8.86 | 158.84 | 0.4072 | -774.0 | -654.7 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -17.08 | 93.42 | -8.90 | 157.72 | 0.3918 | -819.0 | -663.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -16.21 | 91.64 | -10.68 | 152.81 | 0.3911 | -822.0 | -685.8 | |
| 0.00 | 2.16 | 0.00 | 1.20 | -19.87 | 91.18 | -11.14 | 155.87 | 0.4463 | -749.0 | -673.1 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -19.65 | 91.13 | -11.19 | 155.55 | 0.4434 | -741.0 | -570.3 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -22.66 | 89.71 | -12.61 | 155.84 | 0.4944 | -795.0 | -547.2 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -23.53 | 87.92 | -14.40 | 153.74 | 0.5174 | -711.0 | -496.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
