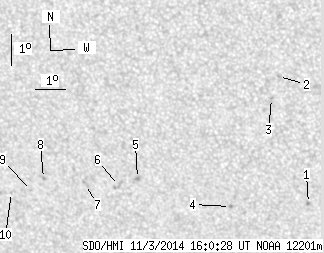

SDO HMI 2014-11-03 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.38 | 0.00 | 10.13 | -20.11 | 79.85 | -20.82 | 140.84 | 0.5284 | 746.1 | 637.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.88 | -20.86 | 85.40 | -15.27 | 149.64 | 0.4888 | 889.0 | 728.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -16.77 | 84.82 | -15.85 | 143.55 | 0.4421 | 843.0 | 726.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -17.48 | 84.53 | -16.14 | 144.04 | 0.4535 | 847.0 | 657.9 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -21.01 | 82.79 | -17.88 | 145.80 | 0.5118 | 783.0 | 724.5 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -20.17 | 79.77 | -20.90 | 140.56 | 0.5292 | 929.0 | 834.7 | |
| 0.00 | 4.15 | 0.00 | 2.43 | -20.41 | 79.09 | -21.58 | 139.99 | 0.5383 | 694.0 | 658.9 | |
| 0.00 | 3.28 | 0.00 | 1.94 | -20.41 | 77.96 | -22.71 | 138.58 | 0.5491 | 472.0 | 505.9 | |
| 0.00 | 1.56 | 0.00 | 0.93 | -20.26 | 76.53 | -24.14 | 136.69 | 0.5615 | 700.0 | 503.4 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -20.66 | 76.04 | -24.63 | 136.67 | 0.5703 | 729.0 | 608.1 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -20.75 | 75.32 | -25.34 | 135.98 | 0.5783 | 575.0 | 467.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
