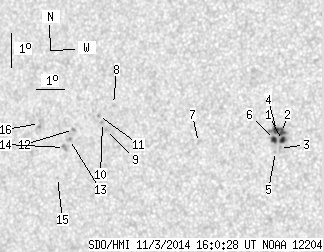

SDO HMI 2014-11-03 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.32 | 42.80 | 6.32 | 24.62 | 5.67 | 70.25 | -30.42 | 85.78 | 0.5063 | -55.2 | -8.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.51 | 21.87 | 1.40 | 12.21 | 5.61 | 73.32 | -27.35 | 85.78 | 0.4604 | -1029.4 | -775.3 | |
| 2.68 | -1.00 | 1.49 | -1.00 | 5.84 | 73.28 | -27.39 | 85.27 | 0.4612 | -1138.7 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.16 | 5.36 | 73.23 | -27.44 | 86.31 | 0.4616 | -777.0 | -590.3 | |
| 3.54 | -1.00 | 1.98 | -1.00 | 5.90 | 73.10 | -27.57 | 85.16 | 0.4639 | -921.2 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 5.27 | 73.10 | -27.57 | 86.52 | 0.4636 | -476.0 | -532.3 | |
| 2.59 | -1.00 | 1.45 | -1.00 | 5.63 | 73.05 | -27.62 | 85.75 | 0.4646 | -833.2 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.09 | 5.45 | 70.46 | -30.21 | 86.26 | 0.5040 | -456.0 | -501.3 | |
| 0.00 | 1.47 | 0.00 | 0.87 | 6.47 | 67.40 | -33.26 | 84.49 | 0.5497 | 564.0 | 479.5 | |
| 0.00 | 1.30 | 0.00 | 0.77 | 5.72 | 67.21 | -33.46 | 85.87 | 0.5522 | 785.0 | 614.7 | |
| 0.00 | 1.30 | 0.00 | 0.77 | 5.92 | 67.05 | -33.62 | 85.51 | 0.5546 | 853.0 | 738.2 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 6.12 | 66.89 | -33.78 | 85.16 | 0.5570 | 767.0 | 653.8 | |
| 0.00 | 1.47 | 0.00 | 0.88 | 5.67 | 66.02 | -34.65 | 86.00 | 0.5694 | 761.0 | 697.2 | |
| 0.00 | 1.90 | 0.00 | 1.15 | 5.37 | 65.89 | -34.78 | 86.53 | 0.5711 | 938.0 | 780.6 | |
| 0.00 | 2.59 | 0.00 | 1.56 | 5.12 | 65.72 | -34.95 | 86.96 | 0.5735 | 794.0 | 615.1 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 4.22 | 65.52 | -35.15 | 88.53 | 0.5766 | 618.0 | 537.1 | |
| 0.00 | 4.24 | 0.00 | 2.59 | 5.80 | 64.76 | -35.91 | 85.81 | 0.5873 | 788.0 | 544.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
