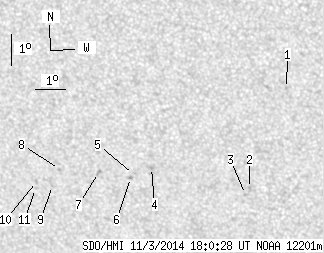

SDO HMI 2014-11-03 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.95 | 0.00 | 8.70 | -20.26 | 79.33 | -20.23 | 141.78 | 0.5245 | 641.0 | 567.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.67 | -17.45 | 84.53 | -15.03 | 145.90 | 0.4432 | 1019.0 | 753.4 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -20.72 | 82.99 | -16.57 | 147.42 | 0.4974 | 812.0 | 580.4 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -20.92 | 82.84 | -16.73 | 147.41 | 0.5011 | 453.0 | 544.8 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -20.10 | 79.80 | -19.77 | 142.00 | 0.5179 | 601.0 | 599.3 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -20.35 | 79.16 | -20.41 | 141.43 | 0.5266 | 770.0 | 585.1 | |
| 0.00 | 1.56 | 0.00 | 0.91 | -20.45 | 79.04 | -20.53 | 141.41 | 0.5288 | 754.0 | 651.8 | |
| 0.00 | 2.16 | 0.00 | 1.27 | -20.31 | 77.97 | -21.59 | 139.84 | 0.5373 | 732.0 | 586.6 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -20.25 | 76.64 | -22.92 | 138.12 | 0.5495 | 589.0 | 535.7 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -20.78 | 76.32 | -23.25 | 138.41 | 0.5581 | 286.0 | 364.0 | |
| 0.00 | 1.47 | 0.00 | 0.88 | -20.67 | 75.78 | -23.79 | 137.63 | 0.5621 | 578.0 | 407.6 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -20.90 | 75.71 | -23.86 | 137.84 | 0.5652 | 457.0 | 451.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
