SDO HMI 2014-11-03 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.43 | 604.78 | 54.64 | 313.42 | 12.08 | 114.62 | 15.06 | 299.65 | 0.2925 | -100.8 | -104.4 | |
|
previous
or next observation for the same group /

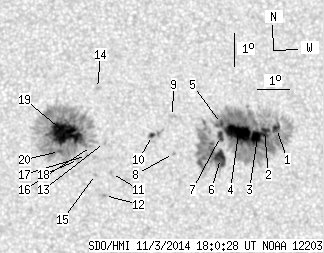

back to the solar disc SDO HMI 2014-11-03 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.98 | 356.84 | 2.09 | 186.72 | 12.25 | 117.92 | 18.36 | 295.21 | 0.3417 | -965.9 | -495.3 | |
| 3.54 | -1.00 | 1.86 | -1.00 | 12.20 | 117.54 | 17.97 | 295.51 | 0.3356 | -920.9 | 999999 | |
| 11.06 | -1.00 | 5.80 | -1.00 | 12.03 | 117.30 | 17.73 | 295.29 | 0.3310 | -1216.1 | 999999 | |
| 29.64 | -1.00 | 15.51 | -1.00 | 12.16 | 116.70 | 17.14 | 296.38 | 0.3230 | -1437.2 | 999999 | |
| 2.07 | -1.00 | 1.08 | -1.00 | 12.44 | 116.18 | 16.62 | 297.85 | 0.3172 | -1050.5 | 999999 | |
| 10.46 | -1.00 | 5.44 | -1.00 | 11.39 | 116.08 | 16.52 | 294.90 | 0.3086 | -1168.1 | 999999 | |
| 3.80 | -1.00 | 1.98 | -1.00 | 12.05 | 116.12 | 16.56 | 296.80 | 0.3136 | -1211.9 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 11.57 | 114.61 | 15.05 | 297.43 | 0.2878 | 809.0 | 648.2 | |
| 0.00 | 2.94 | 0.00 | 1.52 | 12.68 | 114.64 | 15.08 | 300.78 | 0.2968 | 737.0 | 512.8 | |
| 1.56 | 6.48 | 0.80 | 3.35 | 12.13 | 113.98 | 14.42 | 300.14 | 0.2828 | 1049.6 | 783.3 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 11.01 | 112.64 | 13.08 | 298.71 | 0.2544 | 906.0 | 562.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 10.36 | 112.40 | 12.83 | 296.77 | 0.2458 | 883.0 | 729.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 11.94 | 112.47 | 12.91 | 302.22 | 0.2595 | 723.0 | 678.8 | |
| 0.00 | 1.99 | 0.00 | 1.02 | 13.57 | 112.34 | 12.77 | 307.64 | 0.2726 | 757.0 | 561.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 10.99 | 112.15 | 12.58 | 299.53 | 0.2469 | 966.0 | 701.2 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 11.83 | 112.06 | 12.50 | 302.64 | 0.2526 | 525.0 | 427.9 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 11.56 | 111.89 | 12.33 | 302.06 | 0.2479 | 818.0 | 713.9 | |
| 0.00 | 2.51 | 0.00 | 1.28 | 11.45 | 111.64 | 12.07 | 302.16 | 0.2433 | 1003.0 | 705.9 | |
| 38.37 | 223.40 | 19.60 | 114.09 | 12.23 | 111.27 | 11.71 | 305.69 | 0.2453 | 1324.3 | 437.1 | |
| 0.95 | -19.00 | 0.48 | -19.00 | 11.69 | 111.06 | 11.50 | 304.29 | 0.2373 | 961.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
