SDO HMI 2014-11-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.75 | 36.64 | 6.25 | 19.62 | -17.46 | 98.32 | 0.41 | 181.69 | 0.3795 | -54.1 | -211.5 | |
|
previous
or next observation for the same group /

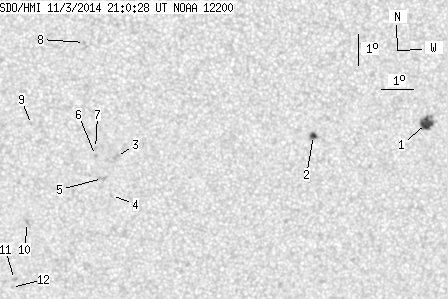

back to the solar disc SDO HMI 2014-11-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.33 | 15.56 | 4.97 | 8.28 | -16.47 | 103.91 | 6.00 | 195.93 | 0.3669 | 1039.5 | 747.6 | |
| 2.42 | 3.72 | 1.28 | 1.97 | -16.83 | 100.40 | 2.49 | 186.64 | 0.3615 | 1056.8 | 814.7 | |
| 0.00 | 3.11 | 0.00 | 1.66 | -17.50 | 94.26 | -3.64 | 170.66 | 0.3748 | -771.0 | -715.9 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -18.75 | 94.08 | -3.83 | 170.76 | 0.3953 | -538.0 | -384.9 | |
| 0.00 | 3.54 | 0.00 | 1.90 | -18.20 | 93.81 | -4.10 | 169.86 | 0.3874 | -762.0 | -647.4 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -17.47 | 93.61 | -4.30 | 169.00 | 0.3762 | -878.0 | -729.6 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -17.24 | 93.61 | -4.29 | 168.89 | 0.3727 | -802.0 | -557.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -13.89 | 93.35 | -4.56 | 165.99 | 0.3200 | -867.0 | -685.4 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -16.49 | 91.64 | -6.27 | 163.42 | 0.3684 | -803.0 | -664.3 | |
| 0.00 | 2.59 | 0.00 | 1.41 | -19.64 | 91.39 | -6.51 | 165.14 | 0.4182 | -855.0 | -692.8 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -21.51 | 90.89 | -7.01 | 165.27 | 0.4486 | -602.0 | -530.8 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -21.77 | 90.78 | -7.12 | 165.21 | 0.4531 | -520.0 | -467.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
