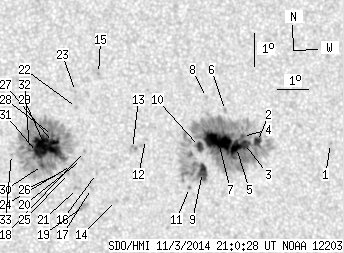

SDO HMI 2014-11-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.35 | 606.78 | 58.72 | 317.03 | 12.13 | 114.59 | 16.69 | 297.41 | 0.3166 | -79.1 | -71.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.75 | 12.11 | 120.32 | 22.41 | 291.17 | 0.4014 | -660.0 | -500.7 | |
| 4.67 | 348.99 | 2.48 | 184.37 | 12.24 | 117.94 | 20.04 | 293.47 | 0.3667 | -877.7 | -441.2 | |
| 3.89 | -2.00 | 2.06 | -2.00 | 12.19 | 117.52 | 19.61 | 293.75 | 0.3600 | -899.3 | 999999 | |
| 1.38 | -2.00 | 0.73 | -2.00 | 12.40 | 117.47 | 19.56 | 294.35 | 0.3606 | -764.5 | 999999 | |
| 12.79 | -2.00 | 6.77 | -2.00 | 12.07 | 117.25 | 19.35 | 293.71 | 0.3554 | -1129.1 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.96 | 13.19 | 116.99 | 19.08 | 296.91 | 0.3585 | -707.0 | -594.2 | |
| 33.53 | -2.00 | 17.71 | -2.00 | 12.27 | 116.69 | 18.78 | 294.81 | 0.3481 | -1363.0 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 13.60 | 116.41 | 18.50 | 298.62 | 0.3529 | 622.0 | 457.1 | |
| 8.47 | -2.00 | 4.45 | -2.00 | 11.35 | 116.11 | 18.20 | 292.90 | 0.3339 | -1095.9 | 999999 | |
| 4.15 | -2.00 | 2.18 | -2.00 | 12.13 | 116.07 | 18.16 | 295.11 | 0.3380 | -1209.3 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 10.91 | 115.67 | 17.76 | 292.09 | 0.3247 | -887.0 | -786.4 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 12.38 | 114.36 | 16.46 | 297.90 | 0.3145 | 617.0 | 461.3 | |
| 0.00 | 3.46 | 0.00 | 1.80 | 12.12 | 113.93 | 16.03 | 297.72 | 0.3063 | 776.0 | 768.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 10.57 | 113.34 | 15.43 | 293.70 | 0.2870 | 821.0 | 667.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 14.40 | 113.01 | 15.10 | 305.61 | 0.3118 | -837.0 | -586.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 11.39 | 112.76 | 14.85 | 297.16 | 0.2837 | 522.0 | 498.1 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 10.94 | 112.58 | 14.67 | 295.97 | 0.2778 | 818.0 | 631.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 12.06 | 112.42 | 14.51 | 299.79 | 0.2837 | 796.0 | 658.8 | |
| 0.00 | 4.58 | 0.00 | 2.36 | 10.41 | 112.30 | 14.39 | 294.57 | 0.2701 | 844.0 | 777.5 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 11.82 | 112.31 | 14.40 | 299.21 | 0.2802 | 711.0 | 657.5 | |
| 0.00 | 2.68 | 0.00 | 1.38 | 10.95 | 112.14 | 14.23 | 296.64 | 0.2713 | 891.0 | 706.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 13.38 | 112.25 | 14.34 | 304.10 | 0.2923 | 766.0 | 503.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 13.87 | 112.24 | 14.34 | 305.49 | 0.2966 | 706.0 | 548.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 11.64 | 111.99 | 14.08 | 299.18 | 0.2742 | 877.0 | 739.6 | |
| 0.00 | 1.47 | 0.00 | 0.76 | 11.41 | 111.88 | 13.98 | 298.57 | 0.2708 | 783.0 | 668.6 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 11.41 | 111.60 | 13.69 | 299.05 | 0.2667 | 898.0 | 698.4 | |
| 5.53 | 226.44 | 2.85 | 116.35 | 12.34 | 111.46 | 13.56 | 302.34 | 0.2723 | 1059.8 | 423.6 | |
| 0.78 | -27.00 | 0.40 | -27.00 | 12.56 | 111.44 | 13.54 | 303.05 | 0.2738 | 678.2 | 999999 | |
| 29.90 | -27.00 | 15.37 | -27.00 | 12.23 | 111.21 | 13.30 | 302.44 | 0.2676 | 1294.1 | 999999 | |
| 1.21 | -27.00 | 0.62 | -27.00 | 11.66 | 111.08 | 13.18 | 300.80 | 0.2611 | 881.1 | 999999 | |
| 4.41 | -27.00 | 2.26 | -27.00 | 12.05 | 110.95 | 13.04 | 302.36 | 0.2624 | 1385.0 | 999999 | |
| 1.64 | -27.00 | 0.84 | -27.00 | 12.15 | 110.70 | 12.80 | 303.14 | 0.2598 | 1069.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 12.01 | 110.13 | 12.23 | 303.82 | 0.2505 | 783.0 | 609.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
