SDO HMI 2014-11-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.89 | 41.84 | 5.93 | 23.05 | 5.65 | 71.96 | -25.95 | 85.51 | 0.4382 | -345.9 | -255.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

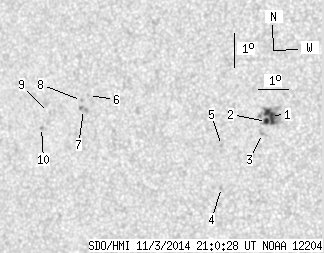

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.56 | 28.26 | 4.66 | 15.38 | 5.80 | 73.42 | -24.49 | 85.04 | 0.4157 | -1147.5 | -614.3 | |
| 2.33 | -1.00 | 1.27 | -1.00 | 5.62 | 73.29 | -24.61 | 85.49 | 0.4176 | -928.3 | 999999 | |
| 0.00 | 3.46 | 0.00 | 1.88 | 5.26 | 73.18 | -24.73 | 86.36 | 0.4192 | -812.0 | -648.6 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 3.62 | 71.88 | -26.03 | 90.20 | 0.4397 | -523.0 | -504.1 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 4.87 | 71.84 | -26.07 | 87.35 | 0.4402 | -792.0 | -633.3 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 6.20 | 67.25 | -30.66 | 84.78 | 0.5111 | 760.0 | 639.1 | |
| 0.00 | 3.72 | 0.00 | 2.14 | 5.78 | 67.10 | -30.81 | 85.62 | 0.5131 | 713.0 | 754.6 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 6.05 | 67.01 | -30.89 | 85.10 | 0.5145 | 914.0 | 727.7 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 5.65 | 65.88 | -32.03 | 85.93 | 0.5312 | 582.0 | 575.0 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 5.19 | 65.66 | -32.25 | 86.80 | 0.5343 | 866.0 | 716.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
