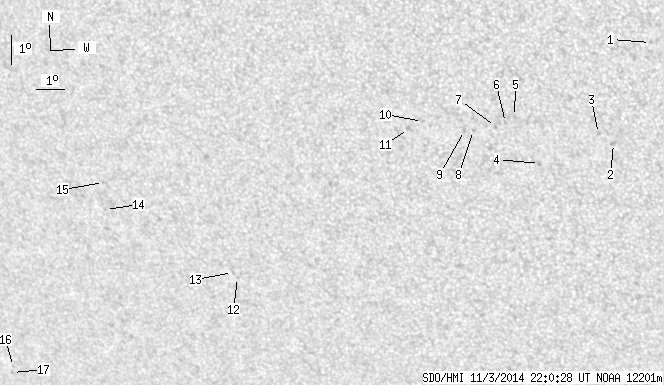

SDO HMI 2014-11-03 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.78 | 0.00 | 13.12 | -21.95 | 75.19 | -22.16 | 142.45 | 0.5583 | 440.0 | 412.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-03 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.71 | -17.56 | 84.50 | -12.85 | 150.01 | 0.4262 | 940.0 | 715.2 | |
| 0.00 | 2.16 | 0.00 | 1.22 | -20.85 | 83.02 | -14.34 | 151.15 | 0.4815 | 768.0 | 706.4 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -20.53 | 82.56 | -14.80 | 150.03 | 0.4808 | 842.0 | 629.4 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -21.56 | 80.49 | -16.87 | 147.91 | 0.5100 | 638.0 | 599.1 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -20.03 | 79.84 | -17.52 | 145.14 | 0.4968 | 853.0 | 687.1 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -20.23 | 79.51 | -17.84 | 144.90 | 0.5020 | 706.0 | 620.5 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -20.37 | 79.16 | -18.19 | 144.56 | 0.5067 | 652.0 | 535.9 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -20.52 | 78.41 | -18.95 | 143.65 | 0.5151 | 797.0 | 642.9 | |
| 0.00 | 1.47 | 0.00 | 0.85 | -20.53 | 78.10 | -19.25 | 143.23 | 0.5179 | 746.0 | 623.7 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -20.27 | 76.72 | -20.63 | 141.02 | 0.5276 | 666.0 | 559.8 | |
| 0.00 | 3.20 | 0.00 | 1.87 | -20.51 | 76.21 | -21.14 | 140.66 | 0.5350 | 799.0 | 593.4 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -25.71 | 69.08 | -28.28 | 138.92 | 0.6519 | 509.0 | 460.7 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -25.54 | 68.93 | -28.42 | 138.59 | 0.6516 | 675.0 | 553.4 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -23.57 | 64.64 | -32.72 | 132.52 | 0.6745 | -565.0 | -452.2 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -22.67 | 64.81 | -32.54 | 131.57 | 0.6658 | -493.0 | -399.6 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -29.22 | 58.84 | -38.52 | 134.60 | 0.7656 | -595.0 | -505.2 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -29.44 | 58.69 | -38.66 | 134.74 | 0.7682 | -458.0 | -386.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
