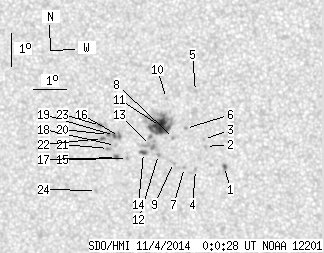

SDO HMI 2014-11-04 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.20 | 97.09 | 13.25 | 49.17 | -4.42 | 87.83 | -8.42 | 135.36 | 0.2087 | 900.9 | 652.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.78 | 3.03 | 0.39 | 1.53 | -5.31 | 89.99 | -6.26 | 146.39 | 0.1969 | 1190.0 | 859.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -4.72 | 89.43 | -6.82 | 142.25 | 0.1942 | 927.0 | 732.9 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -4.51 | 89.37 | -6.88 | 141.34 | 0.1920 | 851.0 | 634.2 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -5.41 | 89.12 | -7.13 | 143.14 | 0.2069 | 843.0 | 628.7 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -3.07 | 89.14 | -7.11 | 135.19 | 0.1761 | 770.0 | 652.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -4.18 | 88.83 | -7.42 | 138.11 | 0.1937 | -659.0 | -454.8 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -5.35 | 88.79 | -7.46 | 141.71 | 0.2096 | 973.0 | 831.0 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -4.48 | 88.47 | -7.78 | 137.77 | 0.2017 | 718.0 | 558.8 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -5.21 | 88.46 | -7.79 | 140.05 | 0.2112 | 806.0 | 591.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -3.28 | 88.27 | -7.98 | 132.72 | 0.1895 | -573.0 | -417.3 | |
| 20.23 | 46.34 | 10.23 | 23.43 | -4.13 | 88.08 | -8.17 | 135.15 | 0.2019 | 1132.8 | 563.9 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -4.97 | 88.01 | -8.24 | 137.72 | 0.2132 | 979.0 | 833.6 | |
| 0.00 | 9.16 | 0.00 | 4.64 | -4.70 | 87.77 | -8.48 | 136.04 | 0.2126 | 854.0 | 837.5 | |
| 1.30 | 3.11 | 0.66 | 1.58 | -4.91 | 87.56 | -8.69 | 136.01 | 0.2177 | 989.5 | 793.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -5.10 | 87.07 | -9.18 | 135.04 | 0.2258 | 786.0 | 557.0 | |
| 0.43 | 9.25 | 0.22 | 4.70 | -4.44 | 86.84 | -9.41 | 132.17 | 0.2209 | 1100.6 | 822.2 | |
| 0.86 | 2.42 | 0.44 | 1.23 | -5.07 | 86.74 | -9.51 | 133.93 | 0.2295 | 953.4 | 751.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -4.71 | 86.72 | -9.53 | 132.70 | 0.2256 | 961.0 | 767.6 | |
| 0.95 | -16.00 | 0.48 | -16.00 | -4.41 | 86.69 | -9.56 | 131.62 | 0.2225 | 1171.8 | 999999 | |
| 0.52 | -16.00 | 0.26 | -16.00 | -4.38 | 86.51 | -9.74 | 130.99 | 0.2245 | 1016.5 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -4.80 | 86.50 | -9.75 | 132.37 | 0.2294 | 914.0 | 783.7 | |
| 0.52 | -16.00 | 0.26 | -16.00 | -4.51 | 86.33 | -9.92 | 130.87 | 0.2282 | 783.3 | 999999 | |
| 0.61 | 4.75 | 0.31 | 2.42 | -4.12 | 86.27 | -9.98 | 129.39 | 0.2246 | 1011.0 | 726.3 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -6.07 | 86.12 | -10.13 | 135.11 | 0.2490 | 668.0 | 626.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
