SDO HMI 2014-11-04 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.23 | 486.24 | 53.54 | 256.74 | 12.17 | 114.30 | 18.60 | 295.18 | 0.3452 | -72.5 | -50.5 | |
|
previous
or next observation for the same group /

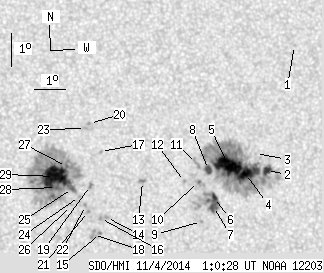

back to the solar disc SDO HMI 2014-11-04 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.67 | 15.96 | 119.26 | 23.56 | 298.80 | 0.4404 | -557.0 | -469.6 | |
| 5.01 | 221.07 | 2.71 | 118.59 | 12.22 | 117.92 | 22.23 | 291.61 | 0.3993 | -878.3 | -451.9 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 12.74 | 117.61 | 21.91 | 293.10 | 0.3974 | -489.0 | -422.5 | |
| 12.71 | -2.00 | 6.83 | -2.00 | 12.15 | 117.23 | 21.53 | 291.99 | 0.3886 | -1113.3 | 999999 | |
| 31.12 | -2.00 | 16.67 | -2.00 | 12.40 | 116.70 | 21.00 | 293.07 | 0.3820 | -1309.2 | 999999 | |
| 3.11 | 29.74 | 1.66 | 15.81 | 11.46 | 116.16 | 20.46 | 291.14 | 0.3690 | -1021.2 | -771.8 | |
| 3.89 | -6.00 | 2.07 | -6.00 | 11.19 | 116.11 | 20.41 | 290.48 | 0.3668 | -970.7 | 999999 | |
| 4.06 | -2.00 | 2.17 | -2.00 | 12.30 | 116.04 | 20.34 | 293.41 | 0.3716 | -1178.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 10.75 | 115.69 | 19.99 | 289.66 | 0.3583 | -896.0 | -716.9 | |
| 0.35 | 4.50 | 0.18 | 2.39 | 11.95 | 115.68 | 19.98 | 292.83 | 0.3644 | -983.0 | -781.4 | |
| 0.00 | 4.58 | 0.00 | 2.44 | 12.49 | 115.66 | 19.96 | 294.24 | 0.3672 | -845.0 | -759.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 11.96 | 115.23 | 19.53 | 293.29 | 0.3577 | -963.0 | -777.4 | |
| 0.00 | 2.59 | 0.00 | 1.36 | 11.99 | 113.88 | 18.19 | 294.76 | 0.3377 | 942.0 | 821.0 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 10.94 | 112.67 | 16.97 | 293.08 | 0.3129 | 740.0 | 628.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 10.46 | 112.45 | 16.75 | 291.88 | 0.3068 | 800.0 | 752.0 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 10.91 | 112.48 | 16.78 | 293.22 | 0.3098 | 1030.0 | 843.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 12.92 | 112.61 | 16.91 | 298.88 | 0.3252 | 721.0 | 639.8 | |
| 0.00 | 4.76 | 0.00 | 2.47 | 10.44 | 112.23 | 16.53 | 292.05 | 0.3032 | 801.0 | 678.0 | |
| 0.00 | 2.42 | 0.00 | 1.26 | 11.91 | 112.22 | 16.52 | 296.50 | 0.3124 | 913.0 | 749.5 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 13.77 | 112.32 | 16.62 | 301.60 | 0.3276 | 818.0 | 678.9 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 11.13 | 112.11 | 16.41 | 294.31 | 0.3056 | 959.0 | 773.3 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 11.31 | 112.03 | 16.33 | 294.97 | 0.3055 | 910.0 | 776.3 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 13.62 | 112.18 | 16.48 | 301.40 | 0.3245 | 756.0 | 713.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 11.58 | 111.85 | 16.16 | 296.02 | 0.3047 | 918.0 | 847.9 | |
| 1.12 | 199.37 | 0.58 | 103.38 | 11.83 | 111.65 | 15.95 | 297.03 | 0.3033 | 871.5 | 440.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 11.32 | 111.59 | 15.89 | 295.56 | 0.2989 | 775.0 | 587.1 | |
| 0.26 | -25.00 | 0.13 | -25.00 | 12.49 | 111.50 | 15.80 | 299.21 | 0.3059 | 717.0 | 999999 | |
| 2.16 | -25.00 | 1.12 | -25.00 | 11.87 | 111.15 | 15.45 | 297.85 | 0.2961 | 811.6 | 999999 | |
| 37.44 | -25.00 | 19.42 | -25.00 | 12.20 | 111.10 | 15.40 | 298.92 | 0.2979 | 1253.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
