SDO HMI 2014-11-04 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.38 | 28.89 | 5.56 | 15.45 | -17.22 | 99.63 | 4.48 | 191.63 | 0.3806 | 32.9 | -139.6 | |
|
previous
or next observation for the same group /

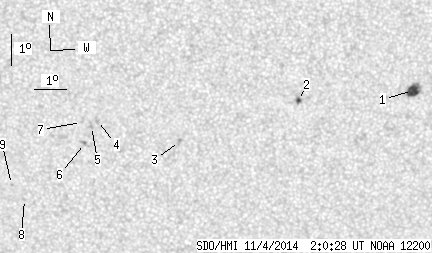

back to the solar disc SDO HMI 2014-11-04 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.82 | 14.01 | 4.73 | 7.50 | -16.54 | 103.97 | 8.82 | 202.69 | 0.3826 | 1024.7 | 715.1 | |
| 1.56 | 3.29 | 0.83 | 1.75 | -16.82 | 100.41 | 5.26 | 193.83 | 0.3688 | 1047.7 | 698.5 | |
| 0.00 | 2.68 | 0.00 | 1.43 | -18.11 | 96.72 | 1.57 | 183.94 | 0.3803 | -911.0 | -696.3 | |
| 0.00 | 2.85 | 0.00 | 1.52 | -17.43 | 94.16 | -0.99 | 177.42 | 0.3688 | -930.0 | -743.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -17.62 | 93.97 | -1.18 | 176.96 | 0.3721 | -893.0 | -738.6 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -18.17 | 93.74 | -1.41 | 176.48 | 0.3811 | -895.0 | -597.3 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -17.49 | 93.66 | -1.49 | 176.14 | 0.3703 | -774.0 | -602.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -19.98 | 91.83 | -3.32 | 172.39 | 0.4132 | -350.0 | -382.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -19.50 | 91.43 | -3.72 | 171.30 | 0.4064 | -550.0 | -535.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
