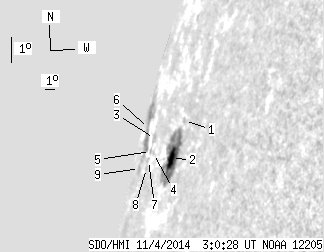

SDO HMI 2014-11-04 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.34 | 99.44 | 23.54 | 374.62 | 14.88 | 11.52 | -83.08 | 75.49 | 0.9901 | -231.0 | 187.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 3.78 | 15.90 | 15.73 | -78.87 | 74.60 | 0.9797 | -126.0 | -88.3 | |
| 9.34 | 57.50 | 23.54 | 145.60 | 14.69 | 15.30 | -79.30 | 75.82 | 0.9813 | -388.2 | -128.1 | |
| 0.00 | 3.46 | 0.00 | 13.57 | 15.02 | 11.09 | -83.51 | 75.36 | 0.9924 | 353.0 | 389.3 | |
| 0.00 | 1.38 | 0.00 | 4.97 | 14.61 | 11.77 | -82.83 | 75.80 | 0.9910 | 388.0 | 367.6 | |
| 0.00 | 1.64 | 0.00 | 6.58 | 14.61 | 10.95 | -83.65 | 75.77 | 0.9928 | 470.0 | 402.6 | |
| 0.00 | 28.45 | 0.00 | 174.76 | 15.15 | 8.55 | -86.05 | 75.11 | 0.9968 | 458.0 | 393.1 | |
| 0.00 | 1.21 | 0.00 | 4.81 | 14.34 | 11.02 | -83.58 | 76.04 | 0.9926 | 210.0 | 244.2 | |
| 0.00 | 1.82 | 0.00 | 7.11 | 14.09 | 11.02 | -83.58 | 76.29 | 0.9927 | 82.0 | 115.9 | |
| 0.00 | 2.42 | 0.00 | 13.44 | 13.95 | 9.01 | -85.59 | 76.34 | 0.9962 | 17.0 | 108.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
