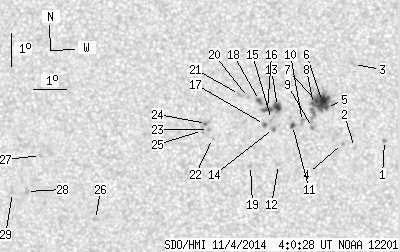

SDO HMI 2014-11-04 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.73 | 93.66 | 13.46 | 47.31 | -4.63 | 87.12 | -6.93 | 142.23 | 0.1948 | 560.3 | 458.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.87 | -5.30 | 90.25 | -3.80 | 157.92 | 0.1765 | 1127.0 | 896.8 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -5.52 | 89.35 | -4.70 | 153.88 | 0.1862 | 747.0 | 529.1 | |
| 0.00 | 2.16 | 0.00 | 1.08 | -3.02 | 89.34 | -4.71 | 146.36 | 0.1489 | 887.0 | 656.0 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -5.40 | 88.99 | -5.06 | 151.88 | 0.1872 | 861.0 | 770.8 | |
| 1.04 | 38.74 | 0.52 | 19.49 | -4.32 | 88.52 | -5.53 | 146.58 | 0.1753 | 945.8 | 724.9 | |
| 12.11 | -5.00 | 6.09 | -5.00 | -4.14 | 88.40 | -5.65 | 145.44 | 0.1739 | 1216.7 | 999999 | |
| 2.68 | -5.00 | 1.35 | -5.00 | -4.11 | 88.22 | -5.83 | 144.50 | 0.1753 | 1178.0 | 999999 | |
| 1.21 | -5.00 | 0.61 | -5.00 | -4.23 | 88.13 | -5.92 | 144.48 | 0.1779 | 981.3 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -4.92 | 88.10 | -5.96 | 146.47 | 0.1880 | 876.0 | 761.7 | |
| 0.00 | 2.68 | 0.00 | 1.35 | -4.74 | 87.80 | -6.25 | 144.62 | 0.1884 | 828.0 | 735.6 | |
| 1.30 | 2.51 | 0.65 | 1.27 | -4.87 | 87.50 | -6.56 | 143.72 | 0.1931 | 1044.4 | 810.0 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -6.05 | 87.06 | -6.99 | 145.36 | 0.2139 | 848.0 | 689.2 | |
| 4.06 | 12.28 | 2.05 | 6.20 | -4.30 | 87.05 | -7.00 | 140.05 | 0.1902 | 1157.2 | 818.4 | |
| 0.00 | 2.33 | 0.00 | 1.18 | -4.96 | 86.92 | -7.13 | 141.70 | 0.2004 | 914.0 | 800.1 | |
| 0.00 | 2.59 | 0.00 | 1.31 | -4.69 | 86.87 | -7.19 | 140.62 | 0.1974 | 902.0 | 774.6 | |
| 2.51 | -13.00 | 1.27 | -13.00 | -4.39 | 86.75 | -7.30 | 139.17 | 0.1947 | 1015.7 | 999999 | |
| 0.61 | 2.16 | 0.31 | 1.09 | -4.84 | 86.65 | -7.40 | 140.28 | 0.2017 | 930.1 | 724.1 | |
| 1.21 | 3.11 | 0.61 | 1.57 | -4.12 | 86.51 | -7.54 | 137.33 | 0.1940 | 1048.4 | 799.8 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -6.08 | 86.22 | -7.84 | 142.34 | 0.2230 | 366.0 | 404.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -4.04 | 86.18 | -7.87 | 135.80 | 0.1968 | 874.0 | 645.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -3.95 | 85.91 | -8.14 | 134.51 | 0.1990 | 742.0 | 619.5 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -5.28 | 85.08 | -8.97 | 136.16 | 0.2252 | -868.0 | -621.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -5.01 | 84.96 | -9.09 | 134.94 | 0.2233 | -1025.0 | -815.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -4.83 | 84.91 | -9.15 | 134.18 | 0.2219 | -1091.0 | -824.7 | |
| 0.00 | 2.25 | 0.00 | 1.14 | -5.04 | 84.78 | -9.27 | 134.47 | 0.2259 | -814.0 | -602.1 | |
| 0.00 | 2.08 | 0.00 | 1.08 | -7.77 | 81.46 | -12.60 | 133.31 | 0.2982 | -834.0 | -642.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -5.86 | 79.82 | -14.23 | 124.87 | 0.2994 | -714.0 | -628.2 | |
| 0.00 | 2.08 | 0.00 | 1.08 | -6.96 | 79.35 | -14.70 | 126.90 | 0.3163 | -888.0 | -737.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -7.00 | 78.92 | -15.13 | 126.19 | 0.3225 | -721.0 | -570.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
