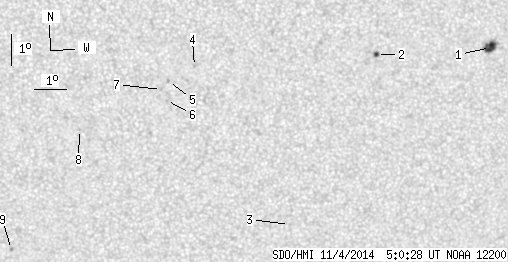

SDO HMI 2014-11-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.86 | 20.67 | 5.30 | 11.14 | -17.66 | 99.86 | 6.35 | 196.10 | 0.3956 | 15.9 | -177.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.13 | 10.81 | 4.38 | 5.82 | -16.61 | 104.03 | 10.52 | 206.43 | 0.3948 | 1036.2 | 778.7 | |
| 1.73 | 2.68 | 0.92 | 1.43 | -16.79 | 100.45 | 6.95 | 198.04 | 0.3756 | 856.8 | 654.3 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -22.29 | 97.88 | 4.37 | 189.04 | 0.4512 | -470.0 | -397.0 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -17.13 | 94.79 | 1.28 | 183.38 | 0.3639 | -890.0 | -729.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -17.61 | 93.98 | 0.47 | 181.22 | 0.3711 | -881.0 | -740.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -18.22 | 93.92 | 0.41 | 181.03 | 0.3810 | -613.0 | -635.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -17.87 | 93.76 | 0.25 | 180.65 | 0.3752 | -822.0 | -676.9 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -19.16 | 91.18 | -2.33 | 174.44 | 0.3979 | -704.0 | -591.8 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -23.11 | 88.91 | -4.60 | 170.83 | 0.4644 | -751.0 | -692.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
