SDO HMI 2014-11-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.25 | 0.00 | 6.50 | -21.64 | 76.61 | -16.90 | 149.12 | 0.5106 | 470.5 | 435.7 | |
|
previous
or next observation for the same group /

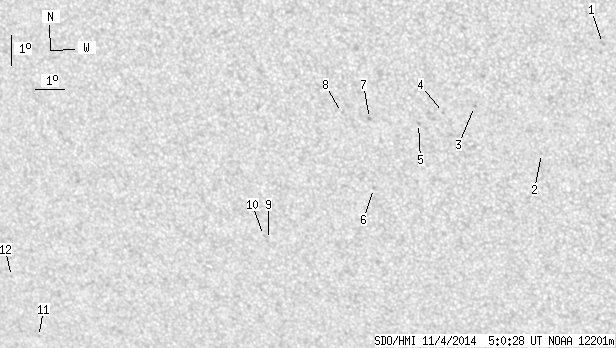

back to the solar disc SDO HMI 2014-11-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.98 | -17.98 | 84.28 | -9.23 | 157.84 | 0.4060 | 800.0 | 612.2 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -21.58 | 82.08 | -11.43 | 156.88 | 0.4712 | 767.0 | 579.4 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -20.07 | 80.02 | -13.48 | 151.72 | 0.4642 | 899.0 | 669.9 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -20.28 | 78.99 | -14.52 | 150.18 | 0.4748 | 600.0 | 563.0 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -20.66 | 78.13 | -15.38 | 149.18 | 0.4863 | 781.0 | 575.9 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -22.84 | 76.37 | -17.14 | 148.87 | 0.5274 | 744.0 | 618.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -20.53 | 76.52 | -16.98 | 146.50 | 0.4977 | 782.0 | 681.7 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -20.35 | 75.61 | -17.89 | 144.92 | 0.5033 | 565.0 | 472.3 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -24.65 | 72.48 | -21.03 | 145.59 | 0.5794 | 331.0 | 270.5 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -24.52 | 72.33 | -21.18 | 145.26 | 0.5791 | 528.0 | 384.6 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -28.29 | 63.09 | -30.42 | 139.75 | 0.6923 | -697.0 | -529.2 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -26.22 | 62.67 | -30.83 | 137.14 | 0.6782 | -454.0 | -385.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
