SDO HMI 2014-11-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.98 | 116.31 | 76.44 | 419.10 | 15.41 | 10.39 | -83.12 | 74.96 | 0.9895 | 165.9 | 153.9 | |
|
previous
or next observation for the same group /

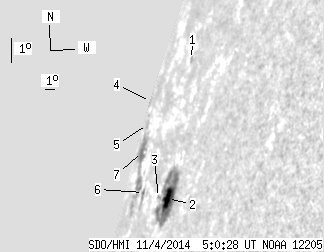

back to the solar disc SDO HMI 2014-11-04 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 5.23 | 18.85 | 12.61 | -80.90 | 71.56 | 0.9858 | -13.0 | 45.9 | |
| 10.55 | 63.73 | 24.31 | 147.76 | 14.71 | 15.29 | -78.22 | 75.82 | 0.9776 | -253.0 | -105.2 | |
| 0.00 | 1.47 | 0.00 | 3.79 | 14.64 | 13.90 | -79.61 | 75.86 | 0.9823 | 174.0 | 198.7 | |
| 0.00 | 1.82 | 0.00 | 28.45 | 16.95 | 4.24 | -89.26 | 73.13 | 0.9996 | 312.0 | 315.6 | |
| 0.00 | 2.59 | 0.00 | 17.98 | 16.40 | 6.64 | -86.86 | 73.82 | 0.9977 | 227.0 | 169.8 | |
| 0.78 | 6.57 | 2.71 | 22.80 | 14.59 | 10.91 | -82.60 | 75.82 | 0.9905 | 245.7 | 186.0 | |
| 8.65 | 38.31 | 49.42 | 193.09 | 15.64 | 7.70 | -85.81 | 74.64 | 0.9964 | 366.9 | 340.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
