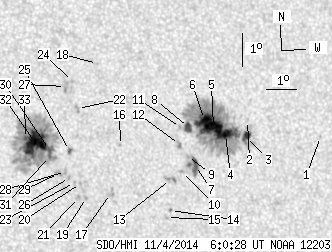

SDO HMI 2014-11-04 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.61 | 455.47 | 50.93 | 244.67 | 12.23 | 114.28 | 21.32 | 292.72 | 0.3861 | -136.1 | -22.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.44 | 12.09 | 120.44 | 27.48 | 288.09 | 0.4767 | -659.0 | -537.9 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 12.64 | 118.02 | 25.06 | 290.65 | 0.4436 | -496.0 | -442.7 | |
| 5.28 | 213.94 | 2.91 | 117.06 | 12.17 | 117.94 | 24.98 | 289.66 | 0.4402 | -831.5 | -460.5 | |
| 8.91 | -3.00 | 4.88 | -3.00 | 12.25 | 117.24 | 24.28 | 290.28 | 0.4303 | -1102.1 | 999999 | |
| 21.45 | -3.00 | 11.73 | -3.00 | 12.47 | 116.86 | 23.91 | 291.03 | 0.4257 | -1346.1 | 999999 | |
| 10.81 | -3.00 | 5.90 | -3.00 | 12.72 | 116.59 | 23.63 | 291.79 | 0.4229 | -1280.5 | 999999 | |
| 5.62 | 12.28 | 3.05 | 6.66 | 11.35 | 116.16 | 23.20 | 288.92 | 0.4101 | -984.0 | -891.5 | |
| 4.58 | -3.00 | 2.49 | -3.00 | 12.49 | 116.04 | 23.08 | 291.68 | 0.4136 | -1110.7 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 11.62 | 115.92 | 22.96 | 289.74 | 0.4077 | -896.0 | -783.4 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 11.18 | 115.69 | 22.73 | 288.84 | 0.4022 | -1008.0 | -730.4 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 12.50 | 115.77 | 22.81 | 291.90 | 0.4097 | -904.0 | -680.7 | |
| 0.00 | 3.11 | 0.00 | 1.69 | 11.99 | 115.69 | 22.73 | 290.77 | 0.4060 | -1050.0 | -911.8 | |
| 0.00 | 4.41 | 0.00 | 2.38 | 10.95 | 115.31 | 22.35 | 288.54 | 0.3954 | -850.0 | -857.0 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 10.02 | 115.23 | 22.28 | 286.29 | 0.3906 | -761.0 | -600.9 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 9.82 | 115.09 | 22.13 | 285.86 | 0.3876 | -702.0 | -450.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 12.01 | 113.76 | 20.80 | 292.35 | 0.3772 | 888.0 | 704.1 | |
| 0.00 | 5.28 | 0.00 | 2.80 | 10.58 | 113.33 | 20.37 | 289.02 | 0.3635 | 769.0 | 628.1 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 14.50 | 113.23 | 20.27 | 298.93 | 0.3850 | -747.0 | -559.7 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 10.48 | 112.55 | 19.59 | 289.37 | 0.3510 | 775.0 | 673.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 10.91 | 112.38 | 19.42 | 290.66 | 0.3505 | 1004.0 | 714.3 | |
| 0.00 | 2.42 | 0.00 | 1.28 | 10.49 | 112.29 | 19.33 | 289.60 | 0.3470 | 831.0 | 677.5 | |
| 0.00 | 3.20 | 0.00 | 1.70 | 13.16 | 112.46 | 19.50 | 296.50 | 0.3648 | 743.0 | 623.4 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 10.94 | 112.19 | 19.23 | 290.92 | 0.3478 | 823.0 | 647.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 13.98 | 112.37 | 19.41 | 298.64 | 0.3690 | 710.0 | 576.5 | |
| 0.86 | 2.33 | 0.46 | 1.23 | 11.90 | 112.10 | 19.14 | 293.61 | 0.3517 | 759.0 | 590.2 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 11.09 | 112.04 | 19.08 | 291.48 | 0.3463 | 892.0 | 672.4 | |
| 0.00 | 5.45 | 0.00 | 2.90 | 13.83 | 112.13 | 19.17 | 298.55 | 0.3646 | 638.0 | 615.0 | |
| 0.00 | 2.16 | 0.00 | 1.14 | 11.28 | 111.93 | 18.97 | 292.09 | 0.3456 | 879.0 | 732.0 | |
| 0.00 | 3.29 | 0.00 | 1.73 | 11.22 | 111.70 | 18.74 | 292.16 | 0.3418 | 924.0 | 808.5 | |
| 2.08 | 179.52 | 1.09 | 94.38 | 11.95 | 111.46 | 18.50 | 294.39 | 0.3424 | 938.5 | 485.2 | |
| 1.04 | -30.00 | 0.55 | -30.00 | 11.74 | 111.45 | 18.49 | 293.84 | 0.3409 | 869.7 | 999999 | |
| 31.56 | -30.00 | 16.60 | -30.00 | 12.17 | 111.03 | 18.07 | 295.47 | 0.3374 | 1267.1 | 999999 | |
| 2.42 | -30.00 | 1.27 | -30.00 | 12.30 | 110.72 | 17.76 | 296.18 | 0.3336 | 1105.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
