SDO HMI 2014-11-04 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.85 | 9.52 | 2.95 | 9.84 | -13.94 | 32.71 | -59.16 | 108.30 | 0.8795 | -65.1 | -41.6 | |
|
previous
or next observation for the same group /

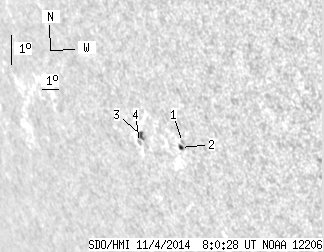

back to the solar disc SDO HMI 2014-11-04 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.80 | -13.89 | 34.18 | -57.69 | 108.61 | 0.8677 | 581.0 | 461.0 | |
| 1.21 | 2.42 | 1.20 | 2.41 | -14.06 | 34.00 | -57.87 | 108.75 | 0.8695 | 407.0 | 348.3 | |
| 1.64 | 3.55 | 1.75 | 3.77 | -13.83 | 31.76 | -60.11 | 107.94 | 0.8868 | -592.5 | -517.9 | |
| 0.00 | 1.73 | 0.00 | 1.86 | -14.06 | 31.53 | -60.34 | 108.14 | 0.8889 | -355.0 | -262.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
