SDO HMI 2014-11-04 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.90 | 19.79 | 4.83 | 10.70 | -17.21 | 100.51 | 9.19 | 202.68 | 0.4017 | 173.1 | 76.5 | |
|
previous
or next observation for the same group /

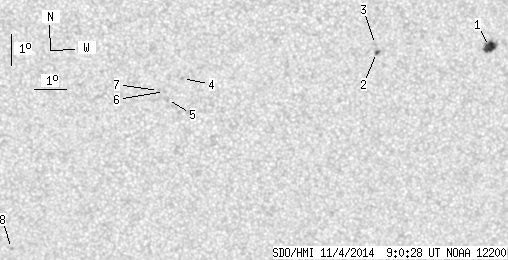

back to the solar disc SDO HMI 2014-11-04 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.95 | 10.89 | 4.32 | 5.92 | -16.64 | 104.03 | 12.71 | 210.94 | 0.4116 | 1016.6 | 733.4 | |
| 0.95 | 2.08 | 0.51 | 1.11 | -16.78 | 100.46 | 9.14 | 203.22 | 0.3875 | 822.6 | 699.9 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -16.52 | 100.42 | 9.10 | 203.39 | 0.3835 | 821.0 | 654.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -17.55 | 94.41 | 3.09 | 187.96 | 0.3731 | -921.0 | -713.8 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -18.22 | 93.95 | 2.63 | 186.57 | 0.3830 | -674.0 | -540.3 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -17.97 | 93.86 | 2.53 | 186.41 | 0.3787 | -678.0 | -611.2 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -17.93 | 93.67 | 2.35 | 185.94 | 0.3778 | -849.0 | -673.4 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -23.10 | 88.99 | -2.33 | 175.31 | 0.4596 | -636.0 | -525.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
