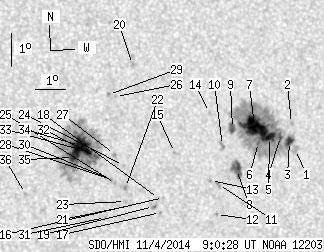

SDO HMI 2014-11-04 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.84 | 413.63 | 46.24 | 225.04 | 12.24 | 114.45 | 23.13 | 291.33 | 0.4131 | -84.8 | -50.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.76 | 0.00 | 2.66 | 11.91 | 118.10 | 26.78 | 288.13 | 0.4657 | 61.0 | 3.5 | |
| 0.00 | 1.56 | 0.00 | 0.87 | 12.70 | 118.05 | 26.73 | 289.78 | 0.4682 | -619.0 | -476.1 | |
| 4.76 | 204.22 | 2.66 | 113.25 | 12.16 | 117.92 | 26.60 | 288.74 | 0.4641 | -848.3 | -447.2 | |
| 2.25 | -3.00 | 1.25 | -3.00 | 12.32 | 117.63 | 26.31 | 289.23 | 0.4605 | -781.6 | 999999 | |
| 7.52 | -3.00 | 4.18 | -3.00 | 12.30 | 117.25 | 25.93 | 289.41 | 0.4549 | -1074.2 | 999999 | |
| 1.56 | -3.00 | 0.86 | -3.00 | 12.16 | 116.87 | 25.55 | 289.34 | 0.4487 | -1015.4 | 999999 | |
| 32.25 | -3.00 | 17.86 | -3.00 | 12.64 | 116.78 | 25.46 | 290.43 | 0.4496 | -1308.6 | 999999 | |
| 0.00 | 12.97 | 0.00 | 7.12 | 11.37 | 116.05 | 24.73 | 288.09 | 0.4333 | -1111.0 | -955.4 | |
| 3.46 | -3.00 | 1.90 | -3.00 | 12.61 | 116.04 | 24.72 | 290.83 | 0.4385 | -1087.4 | 999999 | |
| 0.00 | 3.20 | 0.00 | 1.75 | 12.11 | 115.65 | 24.33 | 289.97 | 0.4305 | -1024.0 | -834.4 | |
| 0.00 | 3.11 | 0.00 | 1.70 | 10.94 | 115.41 | 24.09 | 287.47 | 0.4220 | -923.0 | -788.6 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 10.05 | 115.27 | 23.95 | 285.47 | 0.4165 | -793.0 | -635.3 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 11.07 | 115.16 | 23.84 | 287.92 | 0.4186 | -893.0 | -722.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 13.11 | 115.32 | 24.00 | 292.43 | 0.4304 | -783.0 | -641.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 11.94 | 114.05 | 22.72 | 290.70 | 0.4058 | 823.0 | 674.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 10.61 | 113.57 | 22.25 | 287.79 | 0.3926 | 454.0 | 357.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 10.16 | 113.44 | 22.12 | 286.77 | 0.3888 | 733.0 | 664.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 10.58 | 113.41 | 22.09 | 287.84 | 0.3899 | 580.0 | 510.2 | |
| 0.00 | 2.33 | 0.00 | 1.25 | 10.35 | 113.23 | 21.90 | 287.37 | 0.3862 | 869.0 | 766.8 | |
| 0.00 | 1.47 | 0.00 | 0.80 | 14.63 | 112.92 | 21.60 | 297.89 | 0.4047 | -833.0 | -685.1 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 10.39 | 112.48 | 21.16 | 287.99 | 0.3749 | 683.0 | 476.1 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 10.94 | 112.36 | 21.04 | 289.48 | 0.3755 | 952.0 | 765.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 10.52 | 112.33 | 21.01 | 288.42 | 0.3731 | 839.0 | 652.6 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.60 | 112.35 | 21.02 | 291.17 | 0.3785 | 705.0 | 580.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 11.07 | 112.04 | 20.72 | 290.05 | 0.3713 | 899.0 | 646.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 13.68 | 112.27 | 20.95 | 296.33 | 0.3892 | 720.0 | 580.1 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 11.93 | 112.08 | 20.76 | 292.24 | 0.3763 | 837.0 | 710.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.19 | 111.92 | 20.60 | 290.46 | 0.3701 | 950.0 | 850.5 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 13.74 | 112.04 | 20.72 | 296.71 | 0.3864 | 950.0 | 820.3 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 11.25 | 111.77 | 20.45 | 290.76 | 0.3680 | 889.0 | 719.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 10.06 | 111.65 | 20.33 | 287.69 | 0.3606 | 782.0 | 612.3 | |
| 2.08 | 158.40 | 1.10 | 84.05 | 11.89 | 111.46 | 20.14 | 292.67 | 0.3667 | 821.5 | 501.0 | |
| 5.88 | -32.00 | 3.12 | -32.00 | 12.05 | 111.21 | 19.89 | 293.31 | 0.3639 | 1173.2 | 999999 | |
| 19.63 | -32.00 | 10.42 | -32.00 | 12.23 | 110.97 | 19.65 | 294.02 | 0.3614 | 1237.6 | 999999 | |
| 5.45 | -32.00 | 2.89 | -32.00 | 11.88 | 110.75 | 19.43 | 293.31 | 0.3560 | 1324.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 10.84 | 109.14 | 17.82 | 292.03 | 0.3257 | 876.0 | 691.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
