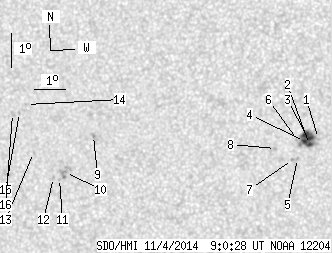

SDO HMI 2014-11-04 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.80 | 43.57 | 6.65 | 23.15 | 5.52 | 70.45 | -20.87 | 84.84 | 0.3567 | -278.4 | 87.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.67 | 5.82 | 74.18 | -17.14 | 83.36 | 0.2964 | -496.0 | -425.5 | |
| 2.08 | 20.58 | 1.08 | 10.69 | 5.64 | 73.91 | -17.41 | 84.06 | 0.3008 | -1122.8 | -715.9 | |
| 7.52 | -2.00 | 3.91 | -2.00 | 5.87 | 73.84 | -17.48 | 83.29 | 0.3022 | -1123.0 | 999999 | |
| 3.20 | -2.00 | 1.66 | -2.00 | 5.72 | 73.75 | -17.57 | 83.81 | 0.3035 | -1173.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 5.21 | 73.54 | -17.78 | 85.53 | 0.3063 | -945.0 | -745.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 5.78 | 73.53 | -17.79 | 83.69 | 0.3073 | -504.0 | -579.1 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 5.18 | 73.39 | -17.93 | 85.67 | 0.3089 | -901.0 | -743.0 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 5.49 | 72.84 | -18.48 | 84.76 | 0.3182 | -732.0 | -531.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 5.74 | 66.99 | -24.33 | 85.01 | 0.4133 | 877.0 | 737.1 | |
| 0.00 | 7.95 | 0.00 | 4.35 | 4.61 | 66.11 | -25.21 | 87.76 | 0.4267 | 981.0 | 780.1 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 4.43 | 65.92 | -25.40 | 88.19 | 0.4297 | 516.0 | 558.0 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 4.45 | 65.72 | -25.60 | 88.13 | 0.4328 | 715.0 | 544.5 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 5.18 | 65.03 | -26.29 | 86.49 | 0.4438 | 603.0 | 459.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 6.60 | 64.72 | -26.60 | 83.34 | 0.4496 | 627.0 | 511.5 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 6.35 | 64.50 | -26.82 | 83.91 | 0.4528 | 733.0 | 661.8 | |
| 0.00 | 2.59 | 0.00 | 1.44 | 6.31 | 64.27 | -27.05 | 84.03 | 0.4564 | 607.0 | 480.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
