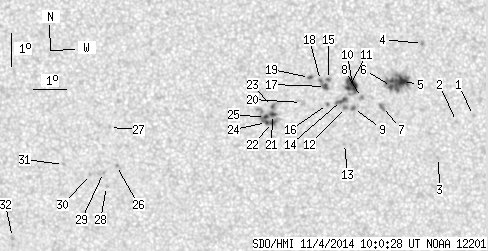

SDO HMI 2014-11-04 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.53 | 126.47 | 15.32 | 63.61 | -4.73 | 86.78 | -4.00 | 157.14 | 0.1712 | 418.2 | 334.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.56 | -5.16 | 91.06 | 0.29 | 181.78 | 0.1606 | 753.0 | 506.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -5.34 | 90.55 | -0.22 | 178.65 | 0.1637 | 803.0 | 609.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -6.42 | 90.01 | -0.76 | 175.84 | 0.1829 | 728.0 | 605.4 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -2.99 | 89.55 | -1.23 | 170.07 | 0.1248 | 1006.0 | 816.5 | |
| 5.19 | 36.74 | 2.60 | 18.40 | -4.13 | 88.95 | -1.83 | 167.37 | 0.1463 | 1250.7 | 867.7 | |
| 1.56 | -5.00 | 0.78 | -5.00 | -4.28 | 88.62 | -2.16 | 165.45 | 0.1502 | 1039.6 | 999999 | |
| 0.00 | 3.98 | 0.00 | 2.00 | -4.89 | 88.35 | -2.43 | 164.77 | 0.1615 | 1048.0 | 832.2 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -4.62 | 87.72 | -3.05 | 160.55 | 0.1602 | 1109.0 | 910.8 | |
| 0.61 | 1.99 | 0.30 | 1.00 | -4.95 | 87.48 | -3.30 | 159.85 | 0.1670 | 1008.4 | 831.2 | |
| 8.82 | 18.07 | 4.42 | 9.06 | -4.23 | 87.45 | -3.32 | 158.09 | 0.1555 | 1148.7 | 760.0 | |
| 1.82 | -10.00 | 0.91 | -10.00 | -4.32 | 87.33 | -3.44 | 157.60 | 0.1578 | 1117.3 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.09 | -4.92 | 87.24 | -3.53 | 158.45 | 0.1680 | 930.0 | 822.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -6.00 | 87.20 | -3.57 | 160.42 | 0.1858 | 675.0 | 603.5 | |
| 2.51 | 5.10 | 1.26 | 2.56 | -4.71 | 87.12 | -3.65 | 157.32 | 0.1654 | 1070.8 | 860.0 | |
| 0.43 | 8.47 | 0.22 | 4.25 | -4.08 | 86.74 | -4.04 | 153.53 | 0.1583 | 1146.4 | 846.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -4.83 | 86.70 | -4.07 | 155.32 | 0.1703 | 799.0 | 514.9 | |
| 1.90 | -15.00 | 0.95 | -15.00 | -4.29 | 86.65 | -4.13 | 153.61 | 0.1622 | 1017.5 | 999999 | |
| 0.43 | -15.00 | 0.22 | -15.00 | -4.11 | 86.50 | -4.28 | 152.28 | 0.1606 | 1075.4 | 999999 | |
| 0.86 | 1.90 | 0.43 | 0.95 | -4.02 | 86.17 | -4.60 | 150.23 | 0.1620 | 865.2 | 736.7 | |
| 0.00 | 4.32 | 0.00 | 2.17 | -4.77 | 85.93 | -4.85 | 151.15 | 0.1754 | 272.0 | 227.8 | |
| 1.73 | 26.19 | 0.87 | 13.21 | -5.14 | 85.05 | -5.72 | 148.04 | 0.1884 | -1090.1 | -752.9 | |
| 1.56 | -21.00 | 0.79 | -21.00 | -5.38 | 85.05 | -5.72 | 148.70 | 0.1920 | -1066.8 | 999999 | |
| 0.69 | -21.00 | 0.35 | -21.00 | -4.90 | 85.06 | -5.72 | 147.36 | 0.1849 | -951.1 | 999999 | |
| 1.21 | -21.00 | 0.61 | -21.00 | -5.38 | 84.87 | -5.90 | 147.91 | 0.1936 | -995.6 | 999999 | |
| 1.21 | -21.00 | 0.61 | -21.00 | -5.23 | 84.84 | -5.93 | 147.36 | 0.1917 | -1219.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -6.72 | 80.32 | -10.46 | 135.82 | 0.2598 | -967.0 | -839.3 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -5.58 | 80.13 | -10.65 | 132.04 | 0.2487 | -902.0 | -648.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -7.36 | 80.00 | -10.78 | 136.64 | 0.2714 | -657.0 | -568.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -6.94 | 79.92 | -10.86 | 135.32 | 0.2672 | -916.0 | -792.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -7.00 | 79.52 | -11.26 | 134.46 | 0.2727 | -760.0 | -613.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -6.71 | 78.70 | -12.08 | 131.68 | 0.2794 | -725.0 | -500.2 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -8.95 | 77.06 | -13.72 | 133.56 | 0.3248 | -893.0 | -726.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
