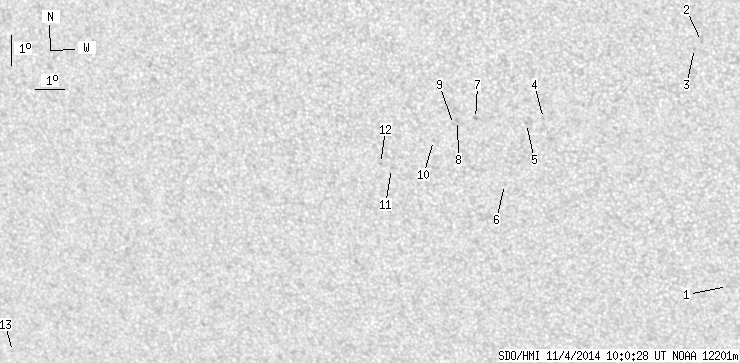

SDO HMI 2014-11-04 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.65 | 0.00 | 7.84 | -21.77 | 76.14 | -14.63 | 152.85 | 0.4966 | 542.2 | 412.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.50 | -26.07 | 84.53 | -6.24 | 168.97 | 0.5128 | -601.0 | -499.5 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -17.95 | 84.07 | -6.70 | 163.47 | 0.3918 | 879.0 | 676.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -18.18 | 83.84 | -6.93 | 163.11 | 0.3964 | 873.0 | 698.7 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -20.50 | 78.88 | -11.90 | 154.99 | 0.4586 | 625.0 | 488.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -20.67 | 78.31 | -12.46 | 154.14 | 0.4648 | 821.0 | 658.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -22.70 | 77.40 | -13.37 | 154.54 | 0.4984 | 648.0 | 543.0 | |
| 0.00 | 1.56 | 0.00 | 0.87 | -20.54 | 76.66 | -14.11 | 151.11 | 0.4747 | 870.0 | 694.9 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -20.61 | 76.06 | -14.71 | 150.19 | 0.4802 | 719.0 | 510.5 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -20.75 | 75.92 | -14.86 | 150.10 | 0.4830 | 664.0 | 534.0 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -21.28 | 75.20 | -15.58 | 149.53 | 0.4955 | 708.0 | 551.8 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -22.24 | 73.68 | -17.09 | 148.26 | 0.5192 | 758.0 | 564.1 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -22.08 | 73.33 | -17.44 | 147.58 | 0.5201 | 723.0 | 595.5 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -28.96 | 58.35 | -32.43 | 138.75 | 0.7139 | -638.0 | -511.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
