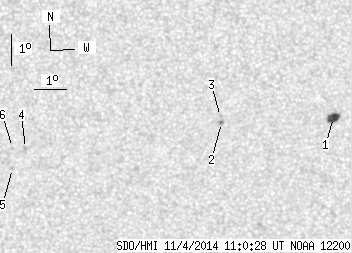

SDO HMI 2014-11-04 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.70 | 16.69 | 4.20 | 9.05 | -16.91 | 101.28 | 11.05 | 206.77 | 0.4072 | 393.9 | 173.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.35 | 10.20 | 4.01 | 5.57 | -16.67 | 104.05 | 13.82 | 213.06 | 0.4213 | 999.6 | 733.3 | |
| 0.35 | 1.56 | 0.19 | 0.84 | -16.77 | 100.50 | 10.27 | 205.75 | 0.3948 | 986.8 | 777.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -16.58 | 100.46 | 10.23 | 205.88 | 0.3918 | 882.0 | 712.5 | |
| 0.00 | 1.30 | 0.00 | 0.69 | -17.54 | 94.38 | 4.15 | 190.64 | 0.3755 | -917.0 | -719.8 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -18.17 | 93.99 | 3.76 | 189.36 | 0.3846 | -822.0 | -653.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -17.50 | 93.97 | 3.75 | 189.64 | 0.3738 | -702.0 | -532.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
