SDO HMI 2014-11-04 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.94 | 174.48 | 49.04 | 445.71 | 14.95 | 10.99 | -78.69 | 75.54 | 0.9775 | -17.4 | 185.3 | |
|
previous
or next observation for the same group /

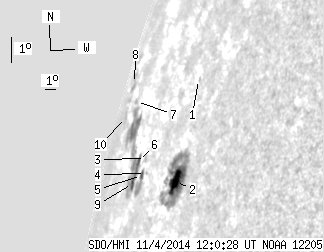

back to the solar disc SDO HMI 2014-11-04 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 1.59 | 17.85 | 14.72 | -74.96 | 72.58 | 0.9646 | -157.0 | -225.4 | |
| 16.08 | 80.98 | 28.70 | 144.86 | 14.73 | 15.34 | -74.35 | 75.82 | 0.9618 | -324.5 | -124.1 | |
| 0.00 | 1.81 | 0.00 | 4.39 | 15.14 | 10.80 | -78.88 | 75.36 | 0.9799 | 357.0 | 374.1 | |
| 0.00 | 0.86 | 0.00 | 2.00 | 14.71 | 11.37 | -78.31 | 75.81 | 0.9779 | 509.0 | 476.8 | |
| 1.90 | 77.18 | 4.58 | 228.69 | 14.62 | 10.86 | -78.82 | 75.90 | 0.9797 | 206.5 | 334.0 | |
| 2.42 | -5.00 | 6.36 | -5.00 | 14.98 | 9.83 | -79.85 | 75.51 | 0.9830 | 587.8 | 999999 | |
| 0.00 | 1.90 | 0.00 | 7.33 | 16.59 | 6.21 | -83.48 | 73.77 | 0.9923 | 291.0 | 261.4 | |
| 0.00 | 6.91 | 0.00 | 37.24 | 17.01 | 4.15 | -85.53 | 73.27 | 0.9959 | 317.0 | 219.4 | |
| 3.54 | -5.00 | 9.40 | -5.00 | 14.30 | 9.77 | -79.91 | 76.20 | 0.9833 | 212.7 | 999999 | |
| 0.00 | 3.98 | 0.00 | 19.61 | 15.97 | 4.47 | -85.21 | 74.32 | 0.9955 | 354.0 | 307.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
