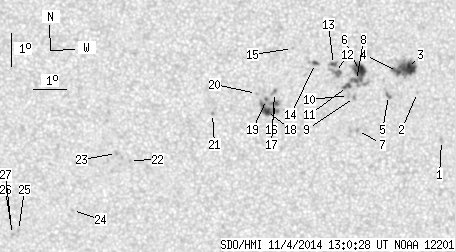

SDO HMI 2014-11-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.01 | 120.11 | 21.05 | 60.33 | -4.80 | 86.82 | -2.31 | 167.01 | 0.1630 | 435.1 | 242.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.09 | -6.34 | 90.11 | 0.97 | 185.37 | 0.1816 | 865.0 | 661.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -4.89 | 89.39 | 0.26 | 181.66 | 0.1559 | 860.0 | 582.6 | |
| 14.17 | 29.99 | 7.09 | 15.01 | -4.17 | 89.09 | -0.04 | 179.73 | 0.1433 | 1162.1 | 742.6 | |
| 3.46 | -3.00 | 1.73 | -3.00 | -4.26 | 88.80 | -0.34 | 177.67 | 0.1450 | 1070.0 | 999999 | |
| 0.00 | 3.02 | 0.00 | 1.52 | -4.98 | 88.53 | -0.61 | 176.15 | 0.1577 | 886.0 | 770.4 | |
| 11.93 | 30.85 | 5.97 | 15.45 | -4.23 | 87.66 | -1.47 | 169.90 | 0.1466 | 1201.4 | 804.1 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -6.04 | 87.60 | -1.54 | 171.33 | 0.1776 | 982.0 | 764.3 | |
| 1.21 | -6.00 | 0.61 | -6.00 | -4.53 | 87.57 | -1.56 | 169.67 | 0.1520 | 1170.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -5.04 | 87.51 | -1.62 | 169.86 | 0.1609 | 1016.0 | 831.8 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -4.98 | 87.33 | -1.80 | 168.70 | 0.1604 | 752.0 | 695.8 | |
| 2.25 | -6.00 | 1.13 | -6.00 | -4.71 | 87.30 | -1.83 | 168.18 | 0.1560 | 988.7 | 999999 | |
| 0.00 | 6.74 | 0.00 | 3.38 | -4.29 | 86.95 | -2.19 | 165.27 | 0.1503 | 1005.0 | 861.8 | |
| 1.21 | 3.28 | 0.61 | 1.64 | -4.05 | 86.89 | -2.24 | 164.47 | 0.1465 | 1118.0 | 833.9 | |
| 1.12 | 3.37 | 0.56 | 1.69 | -4.02 | 86.35 | -2.78 | 160.93 | 0.1488 | 903.5 | 662.3 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -3.57 | 85.67 | -3.46 | 155.48 | 0.1460 | 735.0 | 500.6 | |
| 1.56 | 22.81 | 0.78 | 11.48 | -5.23 | 85.15 | -3.98 | 156.71 | 0.1758 | -1170.7 | -871.8 | |
| 0.00 | 2.59 | 0.00 | 1.30 | -4.90 | 85.12 | -4.01 | 155.80 | 0.1707 | -980.0 | -796.3 | |
| 4.58 | -16.00 | 2.31 | -16.00 | -5.47 | 84.88 | -4.25 | 155.87 | 0.1815 | -1038.5 | 999999 | |
| 0.52 | -16.00 | 0.26 | -16.00 | -5.11 | 84.88 | -4.25 | 155.04 | 0.1758 | -993.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -4.93 | 84.58 | -4.55 | 153.07 | 0.1752 | -688.0 | -506.3 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -5.54 | 83.26 | -5.87 | 148.45 | 0.1955 | 885.0 | 738.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -6.98 | 80.74 | -8.40 | 142.69 | 0.2402 | -840.0 | -692.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -6.77 | 80.35 | -8.79 | 140.89 | 0.2415 | -983.0 | -875.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -8.51 | 78.97 | -10.16 | 141.07 | 0.2790 | -905.0 | -643.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -9.14 | 77.29 | -11.84 | 138.19 | 0.3052 | -826.0 | -668.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -9.27 | 77.10 | -12.03 | 138.01 | 0.3088 | -696.0 | -540.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -9.06 | 77.08 | -12.05 | 137.48 | 0.3065 | -795.0 | -715.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
