SDO HMI 2014-11-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.09 | 0.00 | 8.09 | -22.19 | 74.43 | -14.71 | 152.64 | 0.5024 | 389.6 | 370.2 | |
|
previous
or next observation for the same group /

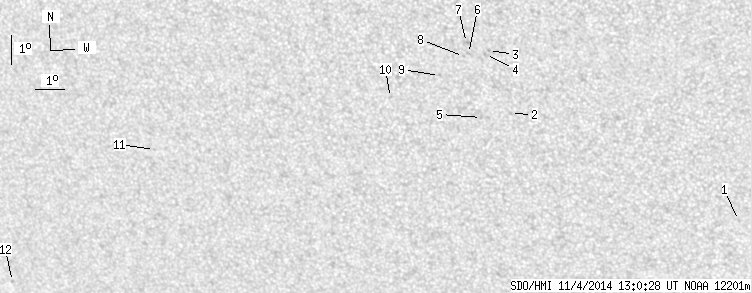

back to the solar disc SDO HMI 2014-11-04 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.45 | -26.17 | 84.62 | -4.52 | 172.00 | 0.5098 | -643.0 | -566.0 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -22.61 | 77.33 | -11.81 | 157.10 | 0.4873 | 705.0 | 561.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -20.54 | 76.78 | -12.35 | 154.20 | 0.4621 | 884.0 | 676.7 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -20.68 | 76.68 | -12.46 | 154.14 | 0.4647 | 590.0 | 579.1 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -22.76 | 76.35 | -12.78 | 155.58 | 0.4953 | 667.0 | 536.1 | |
| 0.00 | 1.56 | 0.00 | 0.87 | -20.65 | 76.12 | -13.01 | 153.14 | 0.4681 | 828.0 | 635.7 | |
| 0.00 | 2.68 | 0.00 | 1.50 | -20.29 | 76.09 | -13.04 | 152.70 | 0.4635 | 872.0 | 631.8 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -20.75 | 75.95 | -13.18 | 152.94 | 0.4707 | 579.0 | 430.6 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -21.39 | 75.10 | -14.03 | 152.16 | 0.4853 | 692.0 | 450.9 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -22.15 | 73.40 | -15.73 | 150.21 | 0.5076 | 748.0 | 581.4 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -24.09 | 64.96 | -24.17 | 141.25 | 0.5994 | -519.0 | -504.6 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -28.86 | 58.39 | -30.75 | 140.04 | 0.6995 | -728.0 | -586.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
