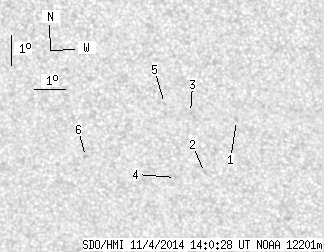

SDO HMI 2014-11-04 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.00 | 0.00 | 3.95 | -21.69 | 76.31 | -12.28 | 155.51 | 0.4778 | 739.0 | 589.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.58 | -20.84 | 78.45 | -10.14 | 158.60 | 0.4526 | 755.0 | 584.5 | |
| 0.00 | 1.47 | 0.00 | 0.83 | -22.58 | 77.27 | -11.31 | 157.92 | 0.4839 | 759.0 | 620.4 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -20.60 | 76.98 | -11.61 | 155.61 | 0.4580 | 751.0 | 608.3 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -22.76 | 76.30 | -12.28 | 156.41 | 0.4921 | 658.0 | 511.1 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -20.32 | 76.16 | -12.43 | 153.83 | 0.4595 | 761.0 | 632.0 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -22.11 | 73.39 | -15.20 | 151.00 | 0.5031 | 750.0 | 589.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
