SDO HMI 2014-11-04 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.72 | 195.79 | 54.73 | 447.05 | 14.92 | 11.34 | -77.25 | 75.59 | 0.9724 | -38.5 | 190.8 | |
|
previous
or next observation for the same group /

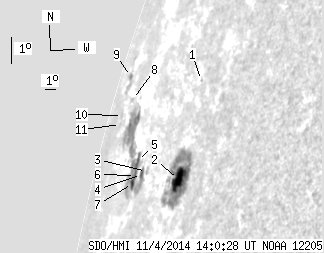

back to the solar disc SDO HMI 2014-11-04 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 1.19 | 17.80 | 14.89 | -73.70 | 72.61 | 0.9589 | -308.0 | -276.0 | |
| 17.97 | 90.29 | 30.06 | 151.75 | 14.77 | 15.36 | -73.23 | 75.78 | 0.9564 | -393.6 | -117.4 | |
| 0.00 | 2.85 | 0.00 | 6.06 | 14.76 | 11.45 | -77.14 | 75.78 | 0.9736 | 507.0 | 465.8 | |
| 2.94 | 90.47 | 6.50 | 239.64 | 14.62 | 10.88 | -77.70 | 75.90 | 0.9758 | 288.5 | 331.9 | |
| 2.76 | -4.00 | 6.60 | -4.00 | 14.96 | 9.84 | -78.75 | 75.55 | 0.9794 | 589.8 | 999999 | |
| 0.60 | -4.00 | 1.43 | -4.00 | 14.54 | 10.07 | -78.51 | 75.98 | 0.9787 | 348.3 | 999999 | |
| 2.59 | -4.00 | 6.21 | -4.00 | 14.28 | 9.92 | -78.66 | 76.24 | 0.9792 | 185.1 | 999999 | |
| 0.00 | 1.90 | 0.00 | 6.63 | 16.61 | 5.93 | -82.65 | 73.78 | 0.9905 | 463.0 | 416.0 | |
| 0.86 | 7.00 | 3.93 | 31.15 | 17.17 | 3.71 | -84.88 | 73.13 | 0.9949 | 223.5 | 296.1 | |
| 0.00 | 1.47 | 0.00 | 6.12 | 16.03 | 4.67 | -83.91 | 74.32 | 0.9932 | 324.0 | 344.8 | |
| 0.00 | 1.12 | 0.00 | 4.51 | 15.76 | 4.81 | -83.78 | 74.60 | 0.9930 | 249.0 | 234.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
