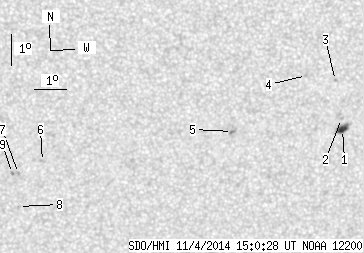

SDO HMI 2014-11-04 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 19.96 | 2.86 | 10.91 | -16.92 | 100.97 | 12.94 | 210.55 | 0.4222 | 109.1 | 136.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.18 | 9.33 | 2.86 | 5.15 | -16.75 | 104.08 | 16.05 | 216.94 | 0.4424 | 993.8 | 699.7 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -16.40 | 104.02 | 15.99 | 217.34 | 0.4375 | 822.0 | 749.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -15.19 | 103.73 | 15.70 | 218.64 | 0.4200 | -911.0 | -783.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.01 | 102.79 | 14.76 | 217.21 | 0.4086 | 716.0 | 574.4 | |
| 0.00 | 2.68 | 0.00 | 1.45 | -16.74 | 100.56 | 12.52 | 210.46 | 0.4113 | 1012.0 | 782.6 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -17.62 | 94.60 | 6.57 | 196.49 | 0.3859 | -796.0 | -652.4 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -18.00 | 93.86 | 5.83 | 194.46 | 0.3886 | -882.0 | -688.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -19.06 | 93.90 | 5.86 | 193.85 | 0.4053 | -668.0 | -353.7 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -18.00 | 93.67 | 5.64 | 194.01 | 0.3878 | -950.0 | -844.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
