SDO HMI 2014-11-04 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.47 | 0.00 | 3.71 | -16.60 | 64.83 | -22.10 | 133.96 | 0.5026 | 671.2 | 573.5 | |
|
previous
or next observation for the same group /

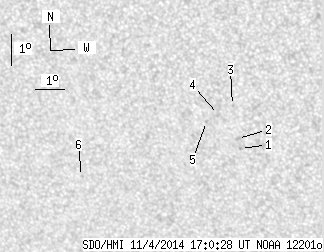

back to the solar disc SDO HMI 2014-11-04 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.40 | -17.18 | 65.50 | -21.43 | 135.65 | 0.5013 | 736.0 | 668.4 | |
| 0.00 | 2.07 | 0.00 | 1.18 | -16.86 | 65.44 | -21.49 | 135.11 | 0.4987 | 810.0 | 705.5 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -15.82 | 65.40 | -21.53 | 133.47 | 0.4886 | 657.0 | 555.1 | |
| 0.00 | 1.55 | 0.00 | 0.89 | -16.12 | 64.90 | -22.03 | 133.28 | 0.4971 | 670.0 | 457.5 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -16.35 | 64.47 | -22.46 | 133.10 | 0.5041 | 542.0 | 457.2 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -18.24 | 59.90 | -27.03 | 130.73 | 0.5717 | 612.0 | 531.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
