SDO HMI 2014-11-04 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 82.23 | 375.64 | 46.69 | 213.31 | 12.36 | 114.64 | 28.26 | 288.43 | 0.4886 | -124.7 | -71.3 | |
|
previous
or next observation for the same group /

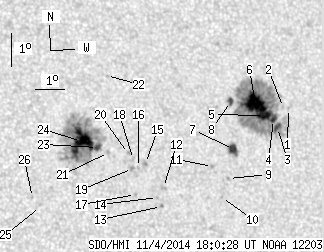

back to the solar disc SDO HMI 2014-11-04 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.46 | 12.74 | 118.10 | 31.72 | 287.51 | 0.5399 | -493.0 | -434.1 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 12.78 | 117.93 | 31.55 | 287.64 | 0.5376 | -454.0 | -404.9 | |
| 3.28 | 206.79 | 1.92 | 120.21 | 12.19 | 117.63 | 31.25 | 286.68 | 0.5315 | -720.2 | -415.7 | |
| 2.68 | -3.00 | 1.56 | -3.00 | 12.43 | 117.52 | 31.14 | 287.17 | 0.5308 | -763.4 | 999999 | |
| 8.72 | -3.00 | 5.08 | -3.00 | 12.56 | 117.22 | 30.84 | 287.54 | 0.5269 | -1098.2 | 999999 | |
| 26.69 | -3.00 | 15.50 | -3.00 | 12.93 | 116.95 | 30.57 | 288.35 | 0.5244 | -1269.5 | 999999 | |
| 5.79 | 8.81 | 3.32 | 5.05 | 11.58 | 116.01 | 29.63 | 286.18 | 0.5063 | -957.7 | -662.6 | |
| 2.16 | -3.00 | 1.24 | -3.00 | 13.03 | 116.08 | 29.70 | 288.92 | 0.5124 | -992.9 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 10.72 | 115.73 | 29.35 | 284.60 | 0.4998 | -729.0 | -585.2 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 10.16 | 115.43 | 29.05 | 283.60 | 0.4938 | -624.0 | -450.2 | |
| 0.00 | 1.73 | 0.00 | 0.98 | 11.10 | 115.22 | 28.84 | 285.55 | 0.4933 | -846.0 | -726.1 | |
| 0.00 | 2.76 | 0.00 | 1.55 | 10.53 | 113.48 | 27.10 | 285.10 | 0.4658 | 531.0 | 483.7 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 9.96 | 113.36 | 26.98 | 283.95 | 0.4623 | 805.0 | 729.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 10.24 | 113.25 | 26.87 | 284.58 | 0.4615 | 701.0 | 563.1 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 11.26 | 112.94 | 26.56 | 286.91 | 0.4603 | 538.0 | 471.9 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 11.15 | 112.69 | 26.31 | 286.79 | 0.4562 | 602.0 | 451.7 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 10.35 | 112.52 | 26.14 | 285.14 | 0.4508 | 769.0 | 658.2 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 11.40 | 112.55 | 26.17 | 287.39 | 0.4549 | 540.0 | 466.0 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 11.13 | 112.49 | 26.11 | 286.84 | 0.4530 | 821.0 | 705.1 | |
| 0.00 | 1.38 | 0.00 | 0.77 | 11.58 | 112.40 | 26.02 | 287.86 | 0.4534 | 673.0 | 566.4 | |
| 0.00 | 2.07 | 0.00 | 1.14 | 11.63 | 111.73 | 25.35 | 288.34 | 0.4437 | 849.0 | 561.3 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 13.95 | 111.92 | 25.54 | 293.16 | 0.4570 | 576.0 | 437.1 | |
| 2.85 | 136.82 | 1.57 | 75.07 | 11.79 | 111.38 | 25.00 | 288.90 | 0.4391 | 757.7 | 445.1 | |
| 30.06 | -23.00 | 16.50 | -23.00 | 11.99 | 110.86 | 24.48 | 289.65 | 0.4322 | 1192.3 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 10.08 | 109.34 | 22.96 | 286.13 | 0.4015 | -348.0 | -414.2 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 10.36 | 109.09 | 22.72 | 286.94 | 0.3988 | -599.0 | -451.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
