SDO HMI 2014-11-04 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.01 | 26.50 | 2.79 | 14.63 | -16.74 | 101.18 | 15.35 | 215.33 | 0.4411 | -51.7 | -37.5 | |
|
previous
or next observation for the same group /

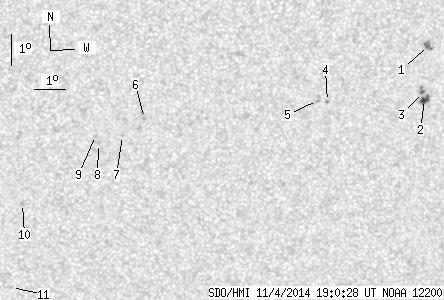

back to the solar disc SDO HMI 2014-11-04 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.87 | 0.00 | 3.24 | -15.06 | 104.06 | 18.23 | 223.04 | 0.4445 | -1062.0 | -824.2 | |
| 4.23 | 6.56 | 2.36 | 3.67 | -16.77 | 104.09 | 18.26 | 220.48 | 0.4641 | 916.7 | 699.7 | |
| 0.78 | 3.37 | 0.43 | 1.88 | -16.54 | 104.00 | 18.17 | 220.68 | 0.4606 | 1028.1 | 922.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -16.76 | 100.94 | 15.11 | 215.31 | 0.4338 | 815.0 | 730.2 | |
| 0.00 | 3.97 | 0.00 | 2.18 | -16.72 | 100.62 | 14.79 | 214.79 | 0.4304 | 712.0 | 674.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -17.20 | 95.15 | 9.32 | 203.19 | 0.3946 | -849.0 | -759.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -17.74 | 94.48 | 8.65 | 201.17 | 0.3985 | -853.0 | -719.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -17.99 | 93.73 | 7.91 | 199.28 | 0.3980 | -991.0 | -727.1 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -17.73 | 93.63 | 7.80 | 199.26 | 0.3936 | -595.0 | -530.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -19.90 | 91.40 | 5.58 | 192.71 | 0.4171 | -778.0 | -596.9 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -22.66 | 91.15 | 5.32 | 190.80 | 0.4588 | -694.0 | -512.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
