SDO HMI 2014-11-04 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.64 | 168.79 | 36.46 | 84.75 | -4.88 | 86.69 | 1.42 | 189.78 | 0.1624 | 157.4 | 201.3 | |
|
previous
or next observation for the same group /

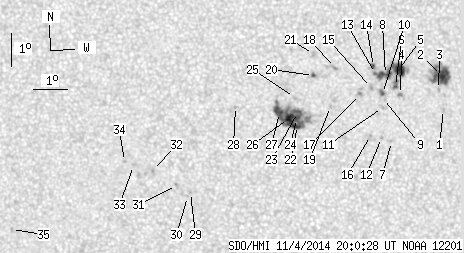

back to the solar disc SDO HMI 2014-11-04 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.48 | -5.22 | 89.60 | 4.32 | 205.09 | 0.1778 | 757.0 | 499.7 | |
| 16.84 | 32.22 | 8.45 | 16.17 | -4.19 | 89.53 | 4.26 | 207.43 | 0.1615 | 1107.5 | 761.6 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -4.61 | 89.44 | 4.17 | 205.80 | 0.1673 | 819.0 | 608.5 | |
| 0.00 | 2.16 | 0.00 | 1.08 | -4.76 | 88.31 | 3.04 | 199.09 | 0.1621 | 970.0 | 736.4 | |
| 10.71 | 37.40 | 5.37 | 18.74 | -4.01 | 88.25 | 2.97 | 200.35 | 0.1495 | 1202.1 | 759.5 | |
| 0.86 | -5.00 | 0.43 | -5.00 | -4.52 | 88.16 | 2.89 | 198.70 | 0.1573 | 996.0 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -6.17 | 88.05 | 2.77 | 195.21 | 0.1841 | 893.0 | 649.2 | |
| 6.65 | -5.00 | 3.33 | -5.00 | -4.15 | 87.86 | 2.59 | 197.58 | 0.1498 | 1207.3 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -4.88 | 87.80 | 2.53 | 195.88 | 0.1614 | 224.0 | 507.6 | |
| 0.86 | 3.02 | 0.43 | 1.52 | -4.72 | 87.77 | 2.50 | 195.96 | 0.1588 | 1164.6 | 887.4 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -5.15 | 87.77 | 2.50 | 195.26 | 0.1658 | 945.0 | 632.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -6.05 | 87.75 | 2.47 | 193.79 | 0.1808 | 870.0 | 695.8 | |
| 0.43 | -5.00 | 0.22 | -5.00 | -4.12 | 87.56 | 2.29 | 195.71 | 0.1478 | 1074.6 | 999999 | |
| 1.04 | 2.16 | 0.52 | 1.08 | -3.91 | 87.50 | 2.23 | 195.71 | 0.1440 | 1008.8 | 848.1 | |
| 0.00 | 2.25 | 0.00 | 1.13 | -4.54 | 87.44 | 2.17 | 194.23 | 0.1543 | 1002.0 | 742.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -5.99 | 87.42 | 2.14 | 192.09 | 0.1785 | 996.0 | 803.3 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -4.75 | 87.12 | 1.84 | 191.87 | 0.1565 | 960.0 | 583.7 | |
| 0.00 | 2.16 | 0.00 | 1.08 | -3.94 | 86.37 | 1.10 | 187.85 | 0.1404 | 961.0 | 841.5 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -5.11 | 86.22 | 0.95 | 185.93 | 0.1603 | -817.0 | -573.2 | |
| 0.86 | 1.90 | 0.43 | 0.95 | -4.18 | 85.71 | 0.44 | 183.08 | 0.1435 | 885.8 | 648.1 | |
| 0.00 | 2.42 | 0.00 | 1.21 | -3.55 | 85.71 | 0.44 | 183.35 | 0.1325 | 816.0 | 679.1 | |
| 6.48 | 60.90 | 3.26 | 30.58 | -5.68 | 85.24 | -0.04 | 179.78 | 0.1693 | -1005.7 | -613.9 | |
| 4.32 | -22.00 | 2.17 | -22.00 | -5.29 | 85.24 | -0.04 | 179.77 | 0.1625 | -1112.4 | 999999 | |
| 3.20 | -22.00 | 1.61 | -22.00 | -5.47 | 85.21 | -0.07 | 179.60 | 0.1656 | -1219.1 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -4.84 | 85.15 | -0.13 | 179.19 | 0.1547 | -859.0 | -482.5 | |
| 12.27 | -22.00 | 6.16 | -22.00 | -5.47 | 84.97 | -0.31 | 178.16 | 0.1657 | -1156.2 | 999999 | |
| 8.12 | -22.00 | 4.08 | -22.00 | -5.29 | 84.70 | -0.57 | 176.47 | 0.1628 | -1075.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -5.11 | 83.39 | -1.89 | 168.32 | 0.1627 | 727.0 | 639.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -7.71 | 82.02 | -3.25 | 164.55 | 0.2118 | -906.0 | -741.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -7.83 | 81.93 | -3.34 | 164.29 | 0.2142 | -693.0 | -507.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -7.50 | 81.61 | -3.67 | 162.37 | 0.2103 | -946.0 | -820.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -7.05 | 80.89 | -4.38 | 158.41 | 0.2072 | -986.0 | -855.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -6.90 | 80.32 | -4.95 | 155.62 | 0.2086 | -966.0 | -793.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -6.78 | 80.05 | -5.22 | 154.21 | 0.2087 | -915.0 | -727.3 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -8.87 | 76.60 | -8.67 | 146.16 | 0.2688 | -880.0 | -622.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
